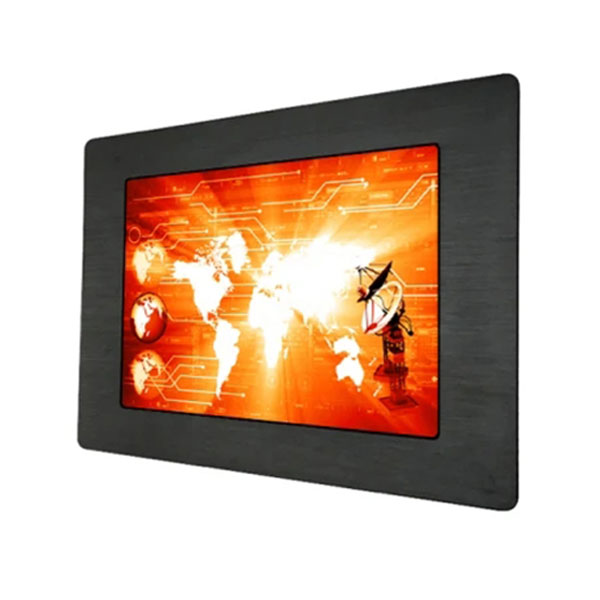

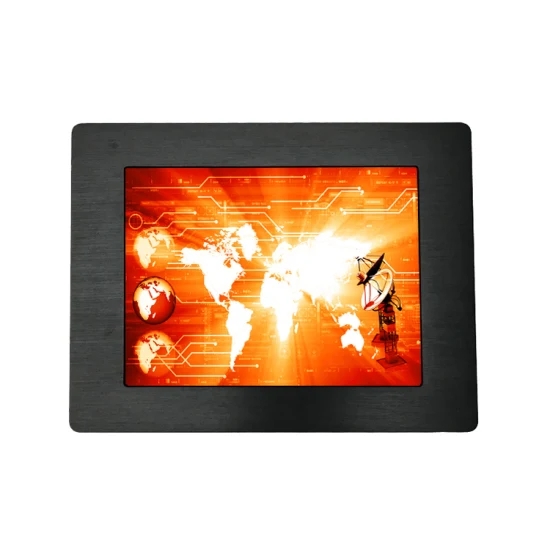

10.4 Inch Industrial Capacitive Touch Monitor Panel Mount, Open Frame Touch Screen Monitor

Brand :

Model NO: AXD-10OPIPN1P1-T2

Screen Size: 10.4 Inch

Display Resolution(pixel): 800×600

Contrast Ratio: 500:1

Brightness (CD/m^2): 300cd/m^2

Touch type: Resistive/Capacitive Touch screen

Application: Kiosks,Industrial machines,Automation,etc

Display Specifications
Display 10.4″ Color TFT Panelmount touchscreen Monitor
Model Name AXD-10OPIPN1P1-T2
Active Display Area (mm) 211.2 (H) x 158.4 (V)
Pixel Pitch (mm) 0.264 (H) x 0.264 (V)
Resolution (Pixel) 800X600
Brightness (CD/m^2) 300cd/m^2
Contrast Ratio 500:1
Viewing Angle (CR >=10) 140/120
Power consumption 6.4 W typical, normal operation
Touch Screen
Type Capacitive touchscreen USB
Durability 50 Million touches(min)
OSD Control On the back side

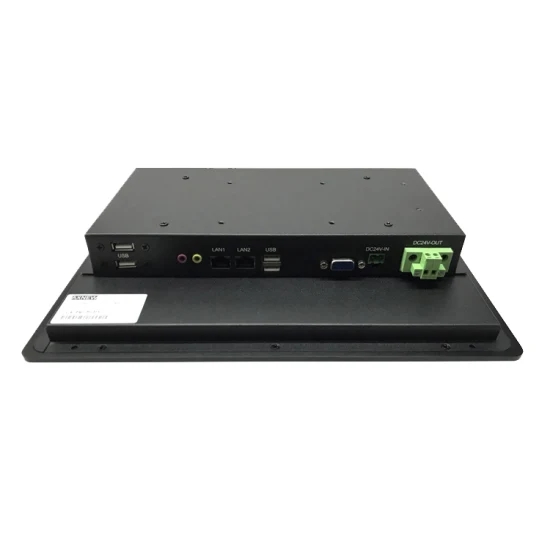

I/O Connectors 1x12v,1XVGA,DVI-D
Power Input AC 100~240V,Universal,±10% ; AC/DC 12V4A
Mechanical Specifications
Construction Aluminum Frame with rugged powered housing
Dimensions 294.6x 229.6x 50(mm)
Mounting Up-down, Left-right panelmount screws fixing holes ,VESA 75×75(100×100)
Power source AC 100~240V/ 12V DC
Environment Specifications
Operating Temperature -20~70ºC
Storage Temperature -30~80ºC
Rating Facilitate installation of the demolition, solid portfolio
Ordering Information 10.4″ panelmount capacitive touch monitor with 300nits



Packaging & Delivery

Packing details 1x 10.4 inch panelmount capacitive touch monitor

Packed in 5 pieces/carton with protection foam

Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter

Delivery terms 7- working days for stock products after receiving payments; 15 working days for order production



Features and Advantages

1. G104 series New and Industrial perfect panels

2. industrial control board supports the displays working 24 hours

3. Panel mount with rugged frame guarantees its working normally in rough environment

4. VGA DVI interfaces ; Pcap capacitive touch screen,usb port

5. 10.4 inch industrial touchscreen monitor for application control ,and industrial terminals etc
