| Display Specifications | |

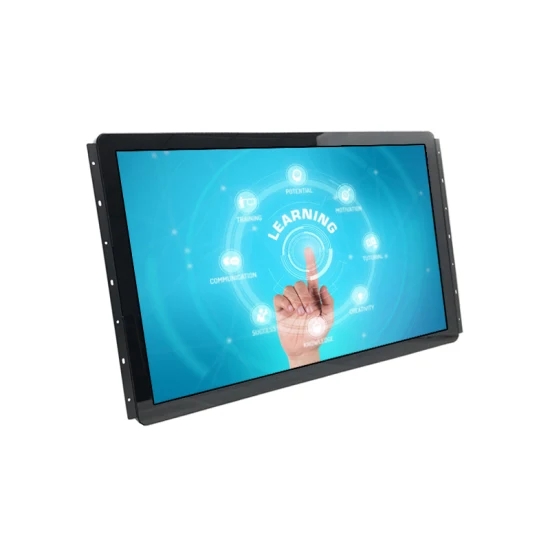

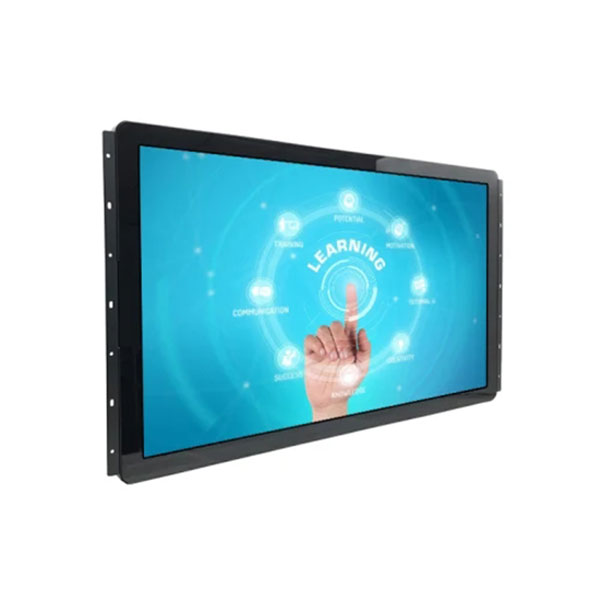

| Display | 31.5″ Color TFT High Brightness monitor |
| Model Name | AXD-32OPN1P3-TH4 |
| Active Display Area (mm) | 698.4 (H) x 392.95 (V) |
| Pixel Pitch (mm) | 0.363 (H) x 0.363(V) |
| Resolution (Pixel) | 1920X1080 |
| Brightness (CD/m^2) | 1000cd/m^2 |
| Contrast Ratio | 1500:1 |
| Viewing Angle (CR >=10) | 178/178 |
| Power consumption | 55 W typical, normal operation |
| Touch Screen | NO ;capacitive ;IR Touch ;RS232/USB(Optional) |
| OSD Control | On the back side |
| I/O Connectors | 1x3pin Power plug,1XVGA,DVI-D;HDMI;S-video etc |
| Power Input | AC 100~240V,Universal,±10% ; AC/DC 12V4A |
| Mechanical Specifications | |
| Construction | Roasted Metal Frame |
| Dimensions | 791x 453x 76(mm) |
| Mounting | Left-right fixing holes ,VESA 75×75(100×100) |
| Power source | AC 100~240V |
| Environment Specifications | |
| Operating Temperature | -10~60℃ |
| Storage Temperature | -20~70℃ |
| Rating | Facilitate installation of the demolition, solid portfolio |
| Ordering Information | 32” Sunlight readable Monitor 1000nits with full HD |
Packaging & Delivery
Packing details |
1x 32 inch High brightness Monitor; Packed in 2 pieces/carton with protection foam Optional accessories: 1xVGA, HDMI Cable ,1x Power supply cable, 1x power adapter |
Delivery terms |
7- working days for stock products after receiving payments; 15 working days for order production |
