| Display Specifications | |

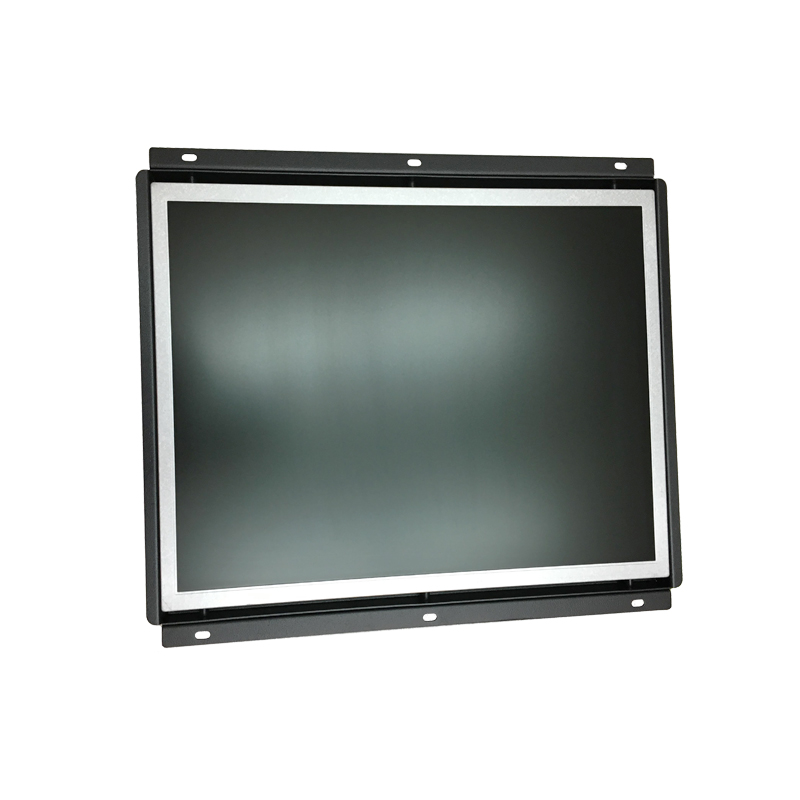

| Display | 15.0″ Color TFT High Brightness monitor |
| Model Name | AXD-15OPN2P2-VH4 |
| Active Display Area (mm) | 305.7(H)x229.7(V) |
| Pixel Pitch (mm) | 0.297 (H) x 0.297 (V) |
| Resolution (Pixel) | 1024X768 |
| Brightness (CD/m^2) | 1000cd/m^2 |
| Contrast Ratio | 600:1 |
| Viewing Angle (CR >=10) | 160/140 |
| Power consumption | 20.5 W typical, normal operation |
| Touch Screen | NO touch |
| OSD Control | On the back side |
| I/O Connectors | 1x12v,1XVGA,DVI-D |
| Power Input | AC 100~240V,Universal,±10% ; AC/DC 12V4A |
| Mechanical Specifications | |
| Construction | Roasted Metal Frame |
| Dimensions | 343x 294x 34.1(mm) |
| Mounting | backside fixing holes |
| Power source | AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature | -20~70ºC |
| Storage Temperature | -30~80ºC |
| Rating | Facilitate installation of the demolition, solid portfolio |
| Ordering Information | 15.0″ Color TFT sunlight readable monitor |
Features:
- Versatile Connections: This models can be integrated in different boards with VGA, DVI or HDMI
- Touch innovations : There are ten-point touch capacitive screen ,Infrared touch and one-point single touch such as resistive touch and SAW touch , can be installed in this model , which is easily way to meet any working environment.
- High Brightness options: The Monitors feature a backlight brightness of 600 cd/m² ,800cd/m2 up to 1500cd/m2 and are avaliable from sizes 7 inch, 10 inch, 12 inch, 14 inch,15 inch, 17 inch, 19 inch standard products. Testing devices are BM-7 devices .
