| Panel PC information | |
| Model Number | AXD-09PPC-A2 C |

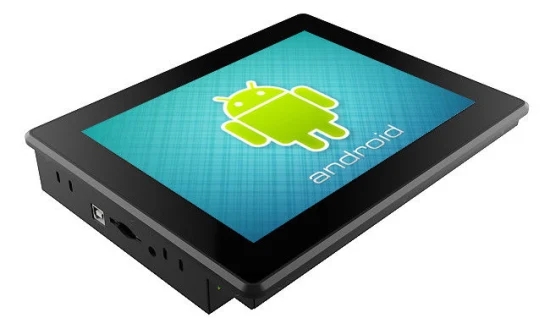

| 9.7” Andriod Touch panel pc | |
| Case/Bezel Color | Black |
| TFT Type | industrial LED Based LCD |
| Aspect ratio | 4:3 |
| Useful Screen Area | 196.84 mm x 147.76 mm |
| Touch Panel | Multi-capacitive touch |
| Touch response time | 10ms (typical |
| Touch PC Dimensions | 250x 201×53.3 mm |
| Optimal (native) Resolution | 1280 x 800 |
| LCD panel Pixel pitch | 0.1695 x 0.1695 mm |
| LCD panel Colors | 262K/16.7 million |
| LCD panel Brightness | 350 cd/m2 |
| LCD panel Response Time | 25 ms |
| Contrast Ratio | 800:1 |
| Viewing Angle ( Wide ) | |
| Horizontal (left/right) | ±85° or 170° total |
| Vertical (up/down) | 85°(up), 85°(down) or 170° total |
| Output Interface | VGA/HDMI type/ AV/Rs232 Options |
| Input Interface | USB*3 |
| Net | Internet LAN |
| Watch Dog Technology | Support |
| Power Specification | External AC to DC power brick |
| Wide voltage from 9V-24V | |
| AC to DC power brick input: 100-240 VAC, 50/60 Hz | |
| Power dissipation: 6W max | |
| ECM (Embed Computer Module) | Quad Core ARM CORTEX-A 9 DDR3: 1G; NAND :8G Operation System:Android 4.42 |
| Temperature | Operating: -10°C to 60°C ;Storage -20°C to 70°C |
| Humidity (non condensing) | 20%RH -95%RH |
| Shipping Carton Dimensions | 490 x 440 x340 mm (Five pieces in one ) |
| Weight (approx.) | Actual: 11kg ;Shipping: 15kg |
| Dimensions | |
| Holes fixings | Vesa mounting 100×100 |
| Mechanical dimensions | 262x 206×53.3 mm |
| Drawings | Please contact us for details |
