| Display Specifications | |

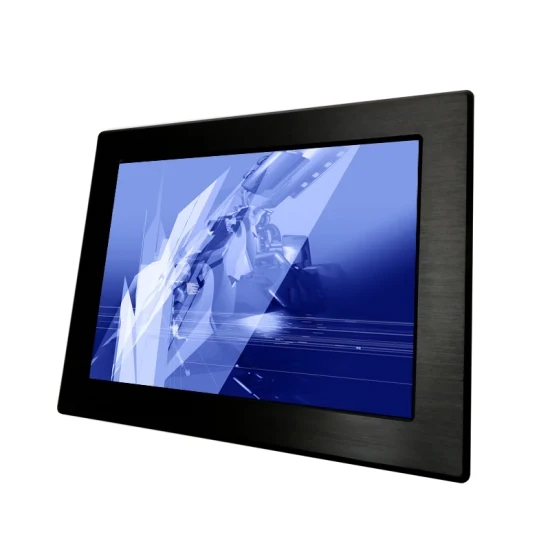

| Display | 12″ Color TFT Industrial Open frame Monitor |
| Model Name | AXD-12OPN1P1-VH2 C |
| Active Display Area (mm) | 246.0 (H) x 184.5 (V) |
| Pixel Pitch (mm) | 0.307 (H) x 0.307 (V) |
| Resolution (Pixel) | 800×600 |
| Brightness (CD/m^2) | 600cd/m^2 |
| Contrast Ratio | 700:1 |
| Viewing Angle (CR >=10) | 160/160 |
| Power consumption | 11.3 W typical, normal operation |
| Touch Screen | projected capacitive Touch |
| OSD Control | On the back side |
| I/O Connectors | 1x12v,1XVGA,DVI-D |
| Power Input | AC 100~240V,Universal,±10% ; AC/DC 12V4A |
| Mechanical Specifications | |
| Construction | Roasted Metal Frame |
| Dimensions | 350.1x 264.1x 50.0(mm) |

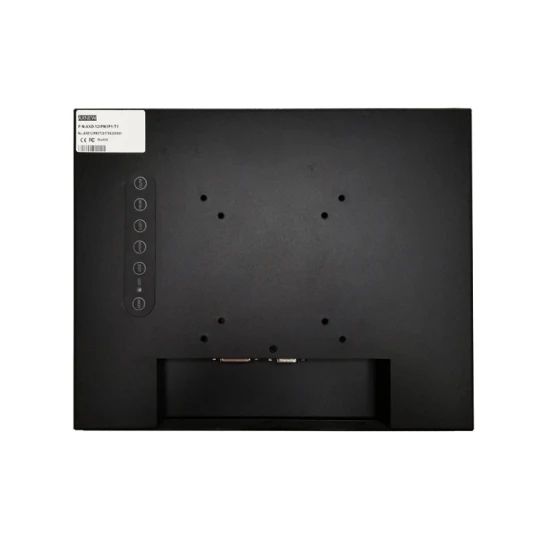

| Mounting | Up-down, Left-right fixing holes ,VESA 75×75(100×100)
Wall Mounting Optional |
| Power source | AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~85ºC |
| Rating | Facilitate installation of the demolition, solid portfolio |
| Ordering Information | 12.1″ OP Monitor 600nits with HD VGA input and power adapter |
