| Display Specifications | |

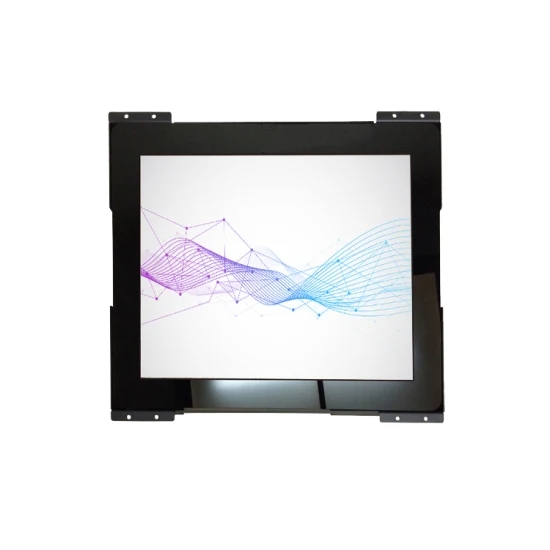

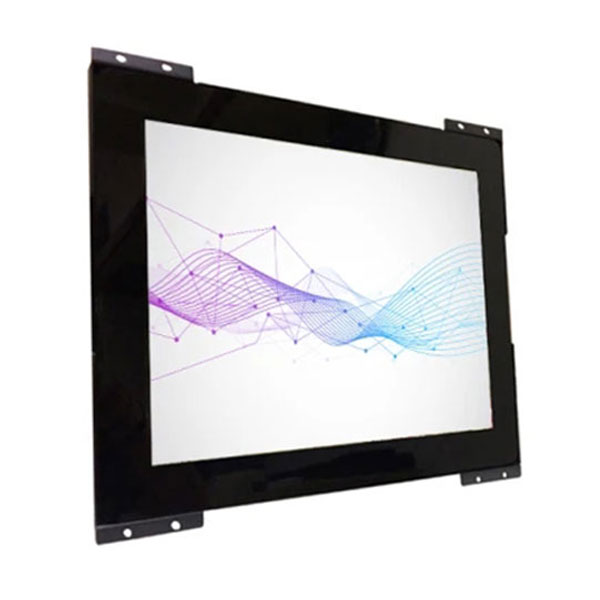

| Display | 12″ Color TFT Industrial Open frame Monitor |
| Model Name | AXD-12OPN1P1-VHT2(VGA/DVI) |
| Active Display Area (mm) | 246.0 (H) x 184.5 (V) |
| Pixel Pitch (mm) | 0.307 (H) x 0.307 (V) |
| Resolution (Pixel) | 800×600 |
| Brightness (CD/m^2) | 650cd/m^2;1100cd/m^2;1500cd/m^2 optional for projects |
| Contrast Ratio | 700:1 |
| Viewing Angle (CR >=10) | 160/160 |
| Power consumption | 12.3 W typical, normal operation |
| Touch Screen | Pro-capacitive ;RS232/USB(Optional) |

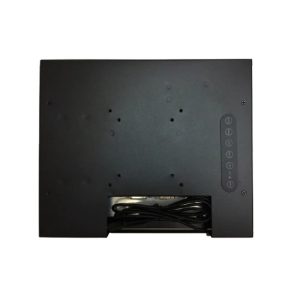

| OSD Control | On the back side |
| I/O Connectors | 1x12v,1XVGA,DVI-D(Optional),h-dmi |
| Power Input | AC 100~240V,Universal,±10% ; AC/DC 12V4A |
| Mechanical Specifications | |
| Construction | Roasted Metal Frame |
| Dimensions | 350.1x 264.1x 50.0(mm) |
| Mounting | Up-down, Left-right fixing holes ,VESA 75×75(100×100) Wall Mounting Optional |
| Power source | AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature | -30~80ºC |
| Storage Temperature | -30~85ºC |
| Rating | Facilitate installation of the demolition, solid portfolio |
| Ordering Information | 12.1″ OP Monitor 650nits with HD VGA input and power adapter |
Features and Advantages
1.New and Industrial A grade perfect panels with stable supply
2. industrial control board supports the displays working 24 hours
3. Professional and industrial hardware and parts to guarantee its working normally in rough environment
4.Open frame design to protect the LCD screen
5. VGA DVI interfaces ;Capacitive touch solution
6. 12.1 inch open frame monitor for application control , advertising player ,campus and industrial terminals etc
