| Display Specifications | |

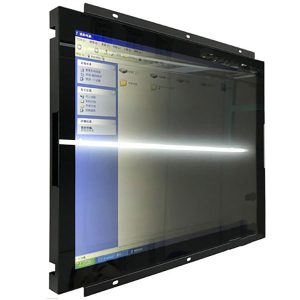

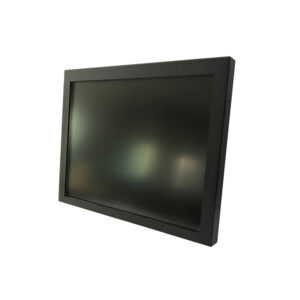

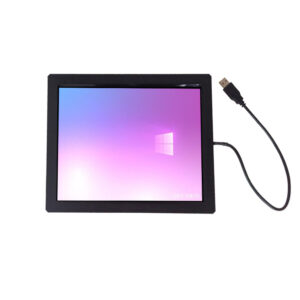

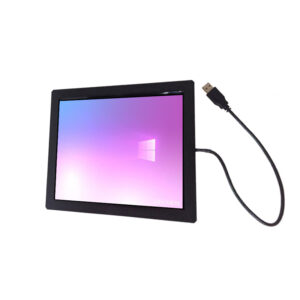

| Display | 12″ Color TFT Capacitive touch Monitor with privacy filter |
| Model Name | AXD-12OPN1P2-V2CF |
| Active Display Area (mm) | 246.0(H)x184.5(V) |
| Pixel Pitch (mm) | 0.3075(H)x0.3075(V) |
| Resolution (Pixel) | VGA (800×600)6 bit + FRC |
| Brightness (CD/m^2) | 500nits |
| Contrast Ratio | 500:1 |
| Viewing Angle (CR >=10) | 160/140 |
| Power consumption | 13.6 W typical, normal operation |
| Touch Screen | Pro-Capacitive touch panel( USB Controller) |
| OSD Control | On the back side |
| I/O Connectors | 1x12v,1XVGA,DVI-D typically |
| Power Input | DC 12V,4A 48W |
| Mechanical Specifications | |
| Construction | Open Frame housing & black Color, anti-vandal |
| Touch Type | Capacitive touch with anti-vandal G+G Glass (3.9mm) |
| Mounting | Embedded ,up and down; left-right fixing holes, vesa75x75;100×100 Wall Mounting Optional |
| Power source | AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature | -30~80℃ |
| Storage Temperature | -30~85℃ |
| Rating | Facilitate installation of the demolition,solid portfolio |
| Privacy film | Right Side 30+/-5 Degree;Left Side 30+/-5 Degree |
| Ordering Information | 12.1” LCD 800×600 4:3 capacitive touch with VGA Input and power adapter |
Features and Advantages
1. New and Industrial A grade perfect panels , high brightness with wide temperature
2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed
3. industrial control board supports the displays working 24 hoursx7 days
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. VGA DVI connector interfaces
6. Custom monitor with 0.6mm privacy film installed on the front screen for special use.
7. Projection capacitive touch with anti-vandal glass, with additional 3mm anti-vandal glass
