| Panel PC information | |
| Model Number | AXD-12PPC-V2A |
| 12.1’’ Touch pc | |
| Case/Bezel Color | Sliver |
| TFT Type | Industrial LCD with LED backlight |
| Aspect ratio | 4:3 |
| Useful Screen Area | 245.76 mm x 184.32mm |
| Touch Panel | Industrial Resistive Flat Screen |
| Touch response time | 10ms (typical) |
| Touch PC Dimensions | 306.8x 228.8×51.7 mm |
| Optimal (native) Resolution | 800×600 |
| LCD panel Pixel pitch | 0.296 x 0.296 mm |
| LCD panel Colors | 262K/16.2 million |
| LCD panel Brightness | 400 cd/m2 |
| LCD panel Response Time | 25 ms |
| Contrast Ratio | 500:1 |
| Viewing Angle ( Wide ) | |
| Horizontal (left/right) | ±70° or 140° total |
| Vertical (up/down) | 70°(up), 70°(down) or 140° total |

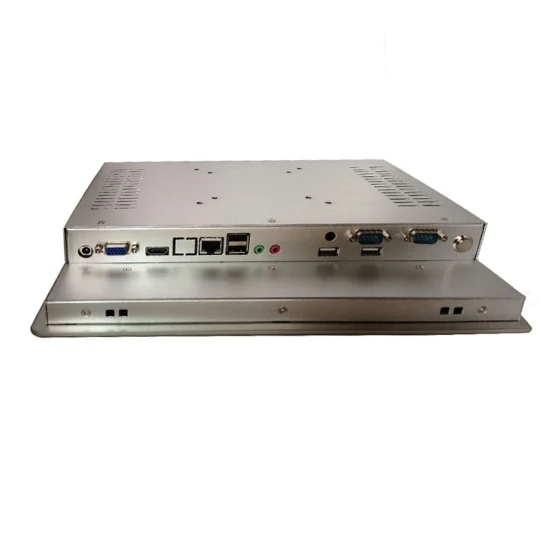

| Output Interface | DC*1;HDMI*1;Audio*2;RS232(COM)*2;etc |
| Input Interface | USB*2.can extend |
| Net | Internet LAN |
| Watch Dog Technology | Support |
| Power Specification | External AC to DC power brick |
| Monitor input: +12VDC ±5%,3.0 A; DC Jack (2.5￠) | |
| AC to DC power brick input: 100-240 VAC, 50/60 Hz | |
| Power dissipation: 36W max | |
| ECM (Embed Computer Module) | Intel® processor j1900 (2.0GHz + NM10 Chipset)
SSD: 64G;Rom:4G(DDR3,max16G); Operation System:Win7;Win8;Win10;Xp;Vista;Linux |
| Temperature | Operating: -10°C to 70°C ;Storage -20°C to 80°C |
| Humidity (non condensing) | Operating: 20%-90%; Storage: 10%-95% |
| Shipping Carton Dimensions | one piece/ per carton |
| Weight (approx.) | Actual: 3.5kg ;Shipping: 4 kg |
| Dimensions | |

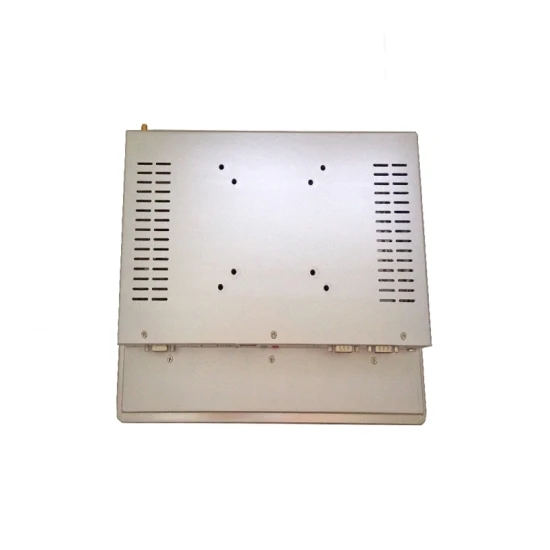

| Holes fixings | Vesa mounting 100×100; fixing button |
| Mechanical dimensions | 306.8mmx 228.8mmx51.7mm |
| Drawings | Please contact us for details |
Packaging & Delivery
| Packing details | 1x 12.1 inch Industrial Touch Panel PC ;
Packed in 1 piece/carton with protection foam Optional accessories:1x Power supply cable, 1x power adapter |
| Delivery terms | 7- working days for stock products after receiving payments; 15 working days for order production |
