Display Specifications |
|
|
Display |

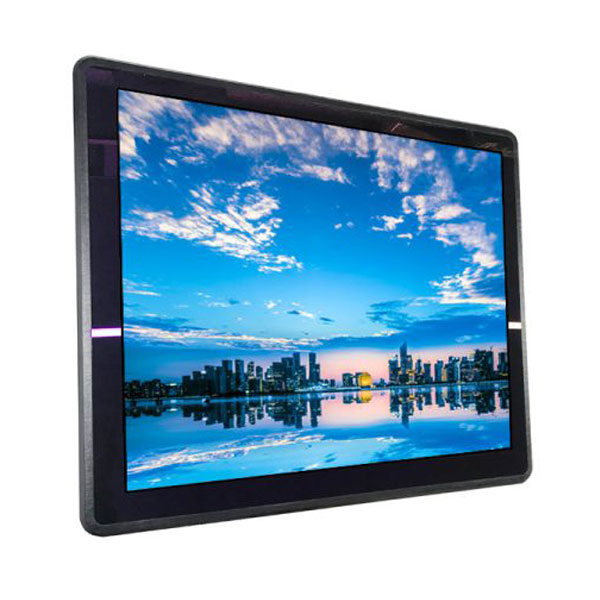

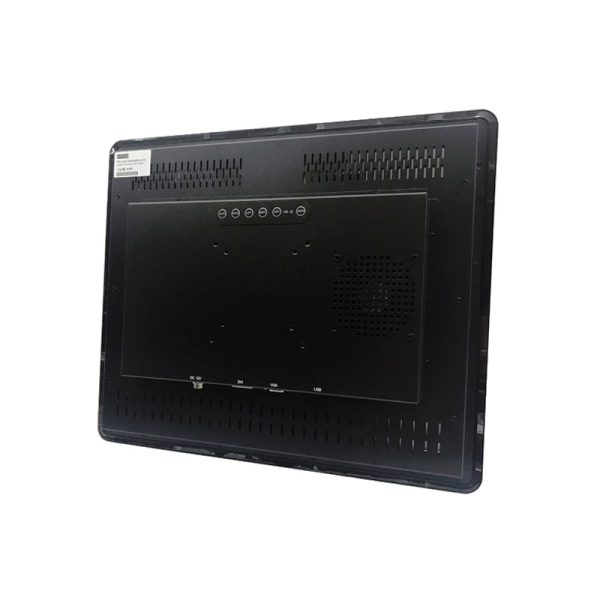

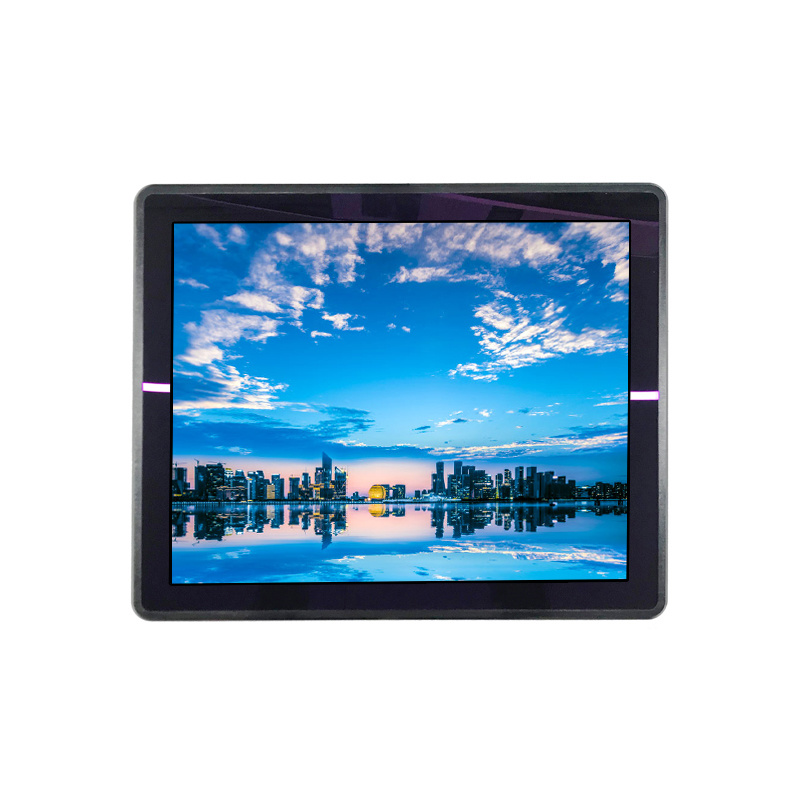

19″ Color TFT Sunlight readable monitor |
|
Model Name |
AXD-19OPN2P2-VHT2 |
|
Active Display Area (mm) |
376.3 (H)x301.1(V) |
|
Pixel Pitch (mm) |
0.294(H)x0.294(V) |
|
Resolution (Pixel) |
SXGA (1280X1024) 16.2 M (6 bit + FRC) |
|
Brightness (CD/m^2) |
800cd/m^2 |
|
Contrast Ratio |
2000:1 |
|
Viewing Angle (CR >=10) |
178/178 |
|
Power consumption |
43.5W typical, normal operation |
|
Touch Screen |
Capacitive touch panel anti-vandal |
|
OSD Control |
On the back side |
|

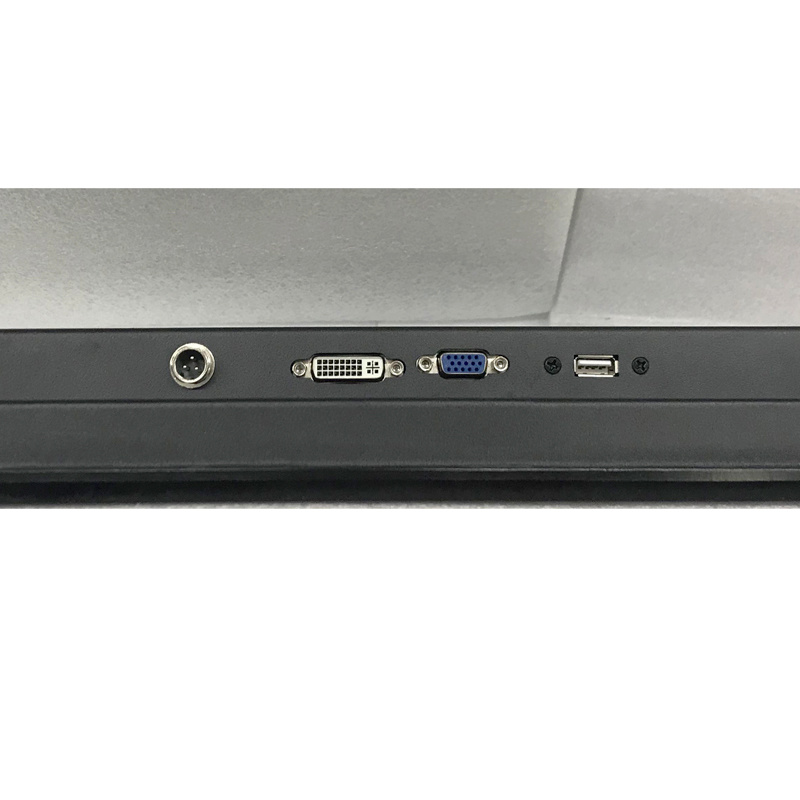

I/O Connectors |
1x12v,1XVGA,DVI-D(Optional) |
|
Power Input |
DC 12V,4A 48W |
|
Mechanical Specifications |
|
|
Construction |
Steel aluminum & silver Color |
|
Dimensions |
432.0 x 339.0×49.8 (mm) |
|
Mounting |
Edge locking ,fixing holes embedded |
|
Power source |
AC 100~240V/ 12V DC-4A |
|
Environment Specifications |
|
|
Operating Temperature |
-20~65ºC |
|
Storage Temperature |
-20~70ºC |
|
Rating |
Facilitate installation of the demolition, solid portfolio |
|
Ordering Information |
19″ PCAP touch Monitor 800nits with VGA input and power adapter |
