| Model Number | AXD-13OPPC-VI3 |

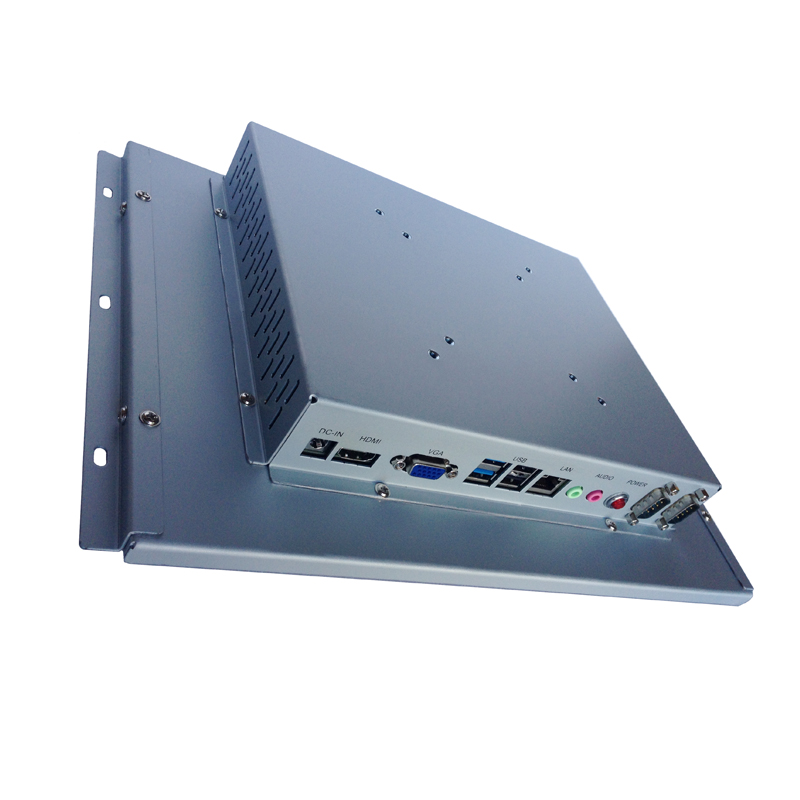

| 13’’ Open Frame built panel pc | |
| Case/Bezel Color | white |
| TFT Type | Industrial LCD with LED backlight |
| Aspect ratio | 4:3 |
| Touch Panel | Industrial PCAP /Resistive Flat Screen |
| Touch response time | 8ms (typical) |
| Optimal (native) Resolution | 1280X800 |
| LCD panel Pixel pitch | 0.297 x 0.297 mm |
| LCD panel Colors | 16.7 million |
| LCD panel Brightness | 400 cd/m2 |
| LCD panel Response Time | 5ms |
| Contrast Ratio | 500:1 |
| Viewing Angle ( Wide ) | |
| Horizontal (left/right) | ±70° or 140° total |
| Vertical (up/down) | 70°(up), 70°(down) or 140° total |
| CPU | Intel® Processor I3 (1.8GHz) |
| storage | 2G RAM;SSD 16G/32G Options |
| Serial Ports | 2 x COM ;RS232/RS485 |
| USB Ports | 2x USB V2.0; 2xUSB V3.0 |
| LAN | 1 x LAN RJ-45 connector |
| DC Power In | 1 x DC2.5 connector |
| Video Port | 1X Line-out |

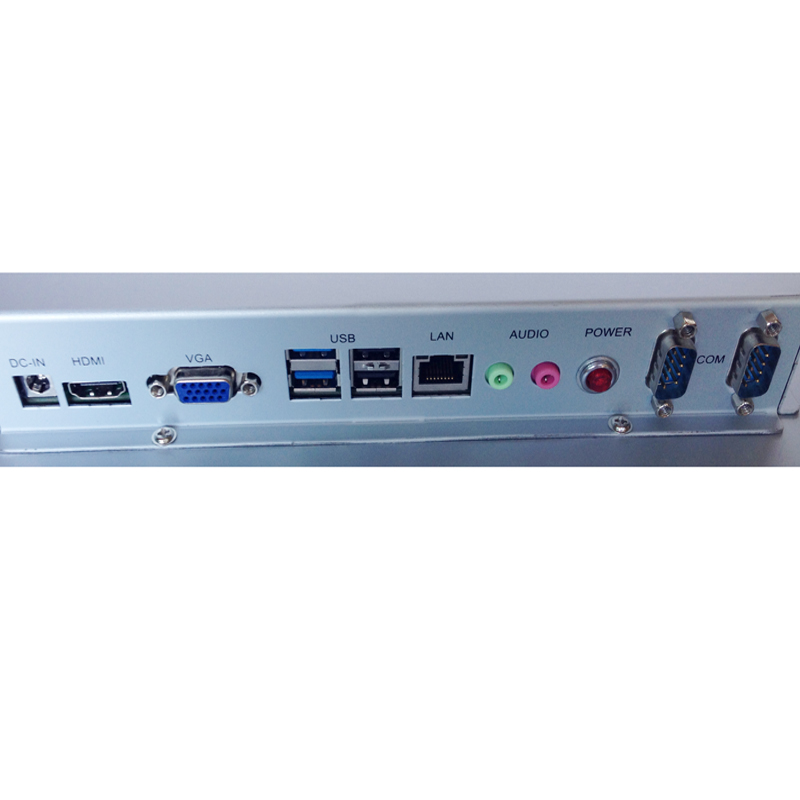

| Other Ports | 1x LAN, 1X VGA ,1xHDMI,1X Audio |
| Internal Sockets & Connectors | reserved for OEM project |
| Power Specification | DC 12V |
| Working Environment | |
| Temperature | Operating: -10°C to 60°C ;Storage -20°C to 65°C |
| Operating Humidity | 5 ~ 90% RH @40°C (non-condensing |
| Vibration | 5 ~ 500Hz, 3Grms Random (with CF/SSD) |
| Dimensions | |
| Mounting Type | Embedded Installation,wall mounting |
| Mechanical dimensions | 339.0 x 225 x 47.0 mm |
| Weight (Net) | 3.5 kgs/ piece, 1 piece/ carton |
| Drawings | Please contact us for details |
Packaging & Delivery
| Packing details | 1x 13 inch Open frame Industrial Touch Panel PC ;
Packed in 5 piece/carton with protection foam Optional accessories:1x Power supply cable, 1x power adapter |
| Delivery terms | 7- working days for stock products after receiving payments; 15 working days for order production |
