| Display Specifications | |
| Display | 15″ High Bright Capacitive touch Monitor |
| Model Name | AXD-15OPN1P5-VH4A |
| Active Display Area (mm) | 305.7(H)x229.7(V) |
| Pixel Pitch (mm) | 0.297(H)x0.297(V) |
| Resolution (Pixel) | VGA (1024×768)6 bit + FRC |
| Brightness (CD/m^2) | 400nits |
| Contrast Ratio | 600:1 |
| Viewing Angle (CR >=10) | 160/150 |
| Power consumption | 10.6 W typical, normal operation |
| Touch Screen | Pro-Capacitive touch panel( USB Controller) |

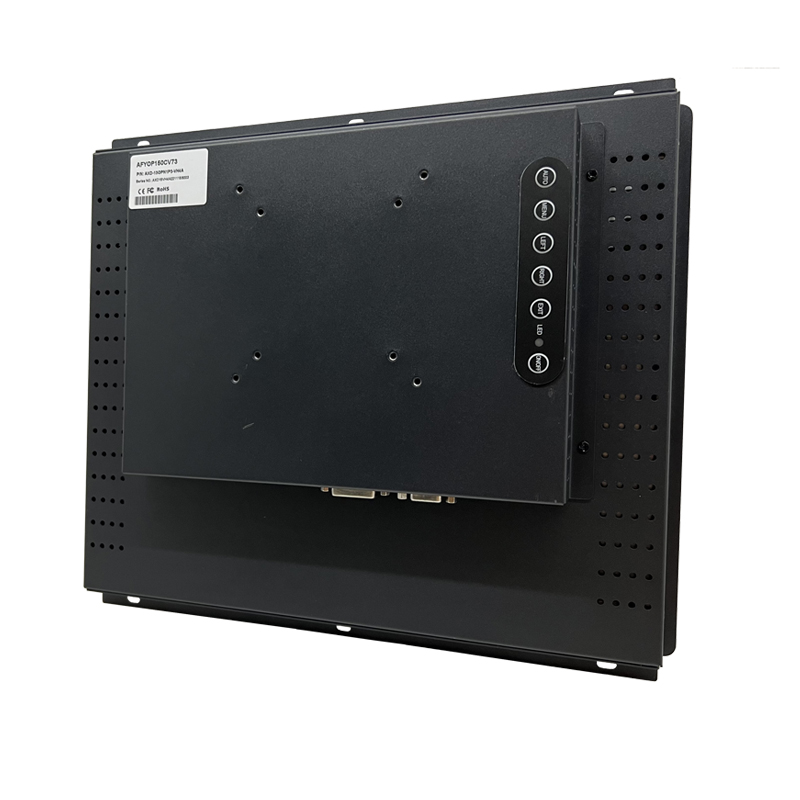

| OSD Control | On the back side |

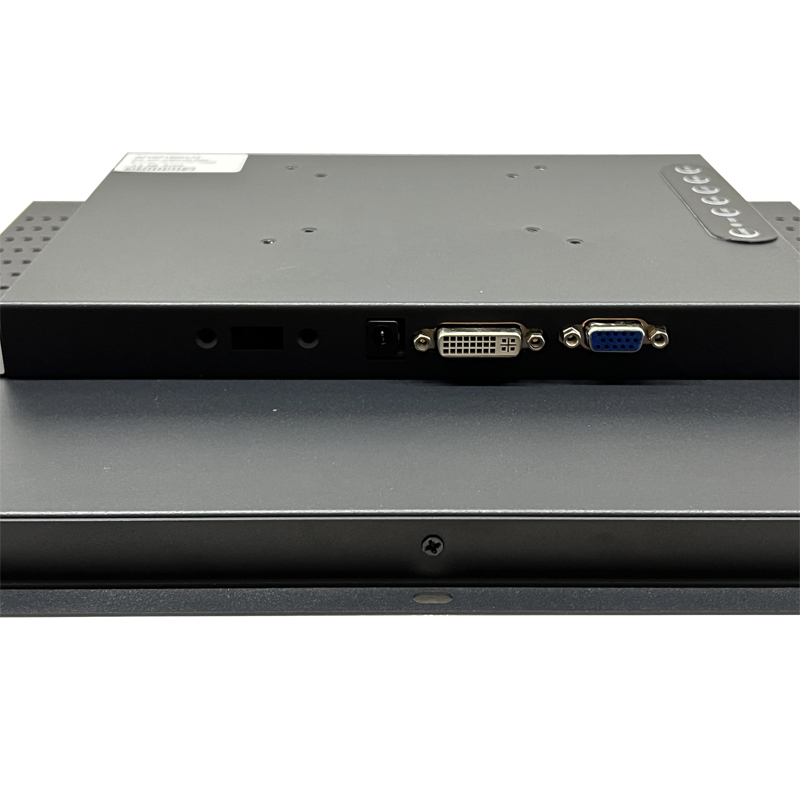

| I/O Connectors | 1x12v,1XVGA,DVI-D(Optional) |
| Power Input | DC 12V,4A 48W |
| Mechanical Specifications | |
| Construction | Steel housing & black Color, anti-vandal |
| Dimensions | 339.5x 264.0×42.5(mm) |
| Mounting | Embedded ,up and down; left-right fixing holes, vesa75x75;100×100 Wall Mounting Optional |
| Power source | AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature | -20~70ºC |
| Storage Temperature | -30~80ºC |
| Rating | Facilitate installation of the demolition,solid portfolio |
| Privacy film | Optional :Right Side 30+/-5 Degree;Left Side 30+/-5 Degree |
| Ordering Information | 15″ LCD High Bright RGB Open Frame LCD |
features and Advantages
1. New and Industrial A grade perfect panels , with super viewing angle, high brightness up to 400nits.
2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed
3. Industrial control board supports the displays working 24 hours
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. VGA DVI interfaces for Capacitive Touch Screen Monitor
6. Projection capacitive touch with anti-vandal glass, could be eeti chipset witout any interference.
7. 15 inch open frame capacitive touch is new and popular touch technology for financial industry ,banking , Automatic equipments etc
