| Panel PC information | |
| Model Number | AXD-15PPC-A2W C |
| 15.6” Multi- Touch panel pc | |
| Case/Bezel Color | Black/Silver |
| TFT Type | New A+ LCD |
| Aspect ratio | 16:9 |
| Useful Screen Area | 344.232 (H)x193.536(V) |
| Touch Panel | Capacitive Multi touch |
| Touch response time | 8ms (typical) |
| LCD panel Pixel pitch | 0.297 x 0.297 mm |
| LCD panel Colors | 16.7million |
| LCD panel Brightness | 300 cd/m2 |
| LCD panel Response Time | 8 ms |
| Contrast Ratio | 600:1 |
| Viewing Angle ( Wide ) | |
| Horizontal (left/right) | ±85° or 170° total |
| Vertical (up/down) | 80°(up), 80°(down) or 160° total |

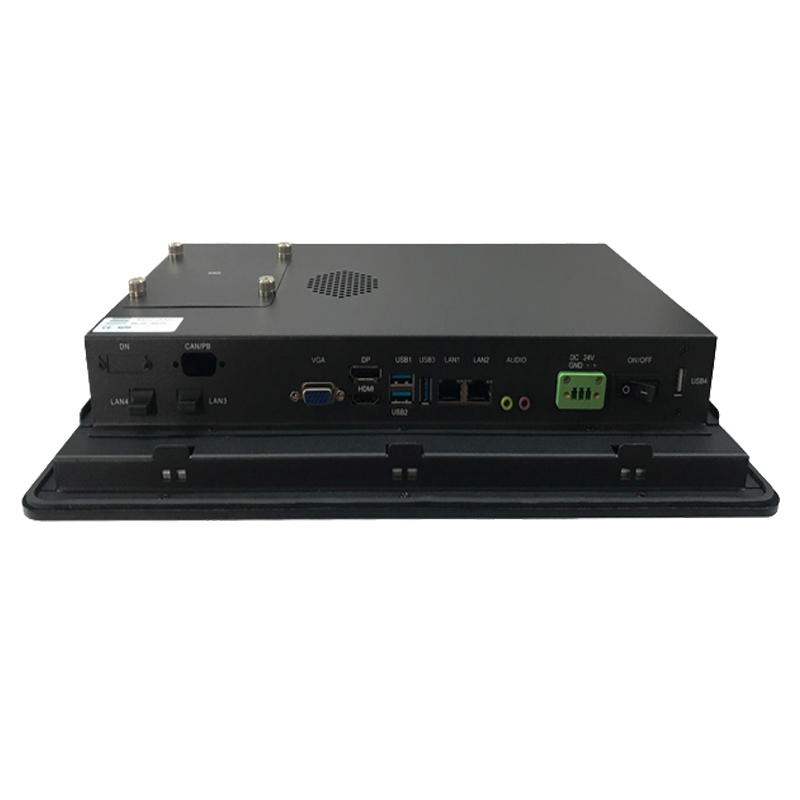

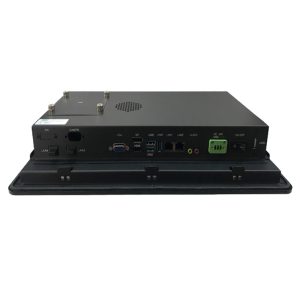

| Output Interface | VGA/HDMI type/ AV/Rs232 Options |
| Input Interface | USB*3 |
| Net | Internet LAN |
| Watch Dog Technology | Support |
| Power Specification | External AC to DC power brick |
| Monitor input: +12VDC ±5%,3.0 A; DC Jack (2.5) | |
| AC to DC power brick input: 100-240 VAC, 50/60 Hz | |
| Power dissipation: 36W max | |
| CPU(Embed Computer Module) | Intel @1037U 1.8Ghz RAM: 4G; SSD:64G Operation System:Winxp/7/8/10, Linux |
| Temperature | Operating: 0°C to 50°C ;Storage -20°C to 60°C |
| Humidity (non condensing) | Operating: 20%-90%; Storage: 10%-95% |
| Weight (approx.) | Actual: 11kg ;Shipping: 15kg |
| Dimensions | |
| Holes fixings | Vesa mounting 100×100 |
| Drawings | Please contact us for details |
