| Display Specifications | |

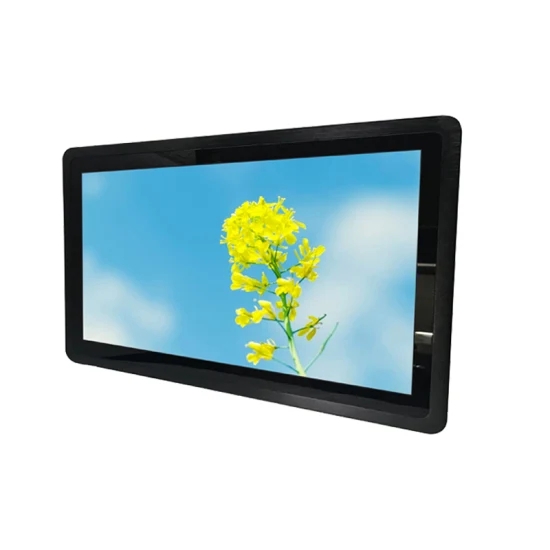

| Display | 15.6″ Color TFT Industrial capacitive touch Monitor |
| Model Name | AXD-156OPIVT2W1 |
| Active Display Area (mm) | 344.16(H)x193.59(V) |
| Pixel Pitch (mm) | 0.1795(H)x0.1795(V) |
| Resolution (Pixel) | 1366×768 |
| Brightness (CD/m^2) | 350nits |
| Contrast Ratio | 700:1 |
| Viewing Angle (CR >=10) | 160/140 |
| Power consumption | 10.6 W typical, normal operation |
| Touch Screen | capacitive touch with 2mm anti-vandal glass |
| OSD Control | On the back side |

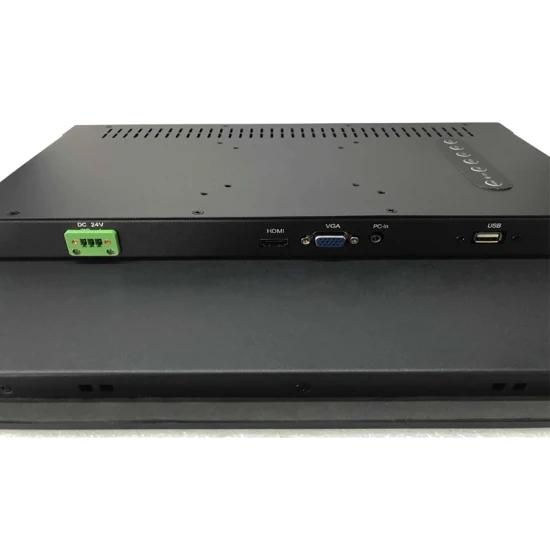

| I/O Connectors | 1x12v,1XVGA,1xHDMI |
| Power Input | DC 12V, 4A 48W in default. 24v is another options |
| Mechanical Specifications | |
| Construction | Steel housing & black Color, anti-vandal |
| Dimensions | 397.0x 25270.0×43.0(mm) |
| Mounting | Embedded ,up and down fixing holes, vesa75x75;100×100 Wall Mounting Optional |
| Power source | AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature | -10~60ºC |
| Storage Temperature | -20~65ºC |
| Rating | Facilitate installation of the demolition,solid portfolio |
| Ordering Information | 15.6″ capacitive touch lcd monitor with HDMI port |
Features and Advantages
1. 15.6 inch open frame lcd monitor 1366×768 Industrial A grade perfect panels
2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed
3. industrial control board supports the displays working 24 hours, vga hdmi, DVI signal inputs
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. 15.6 inch panel mount industrial lcd could be installed for kiosks, Automatic equipments , industrial application,etc
6. it is an IP65 front sealing design , water-proof and dust-proof in the front ,can be installed to semi-outdoor by customers themself.
