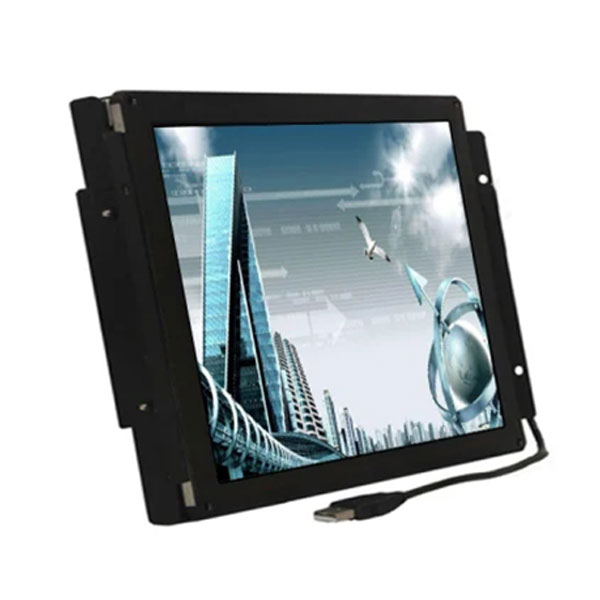

15 inch High Brightness Open Frame Touch Monitor
| Display Specifications | |
| Display | 15″ Color TFT High Brightness touch Monitor |
| Model Name | AXD-15OPN1P2-VHT4A |
| Active Display Area (mm) | 305.7(H)x229.7(V) |
| Pixel Pitch (mm) | 0.297(H)x0.297(V) |
| Resolution (Pixel) | VGA (1024×768)6 bit + FRC |
| Brightness (CD/m^2) | 800nits |
| Contrast Ratio | 600:1 |
| Viewing Angle (CR >=10) | 160/150 |
| Power consumption | 14.6 W typical, normal operation |
| Touch Screen | IR touch panel( USB Controller) with anti-glare treament , IP65 front bezel |
| OSD Control | On the back side |
| I/O Connectors | 1x12v,1XVGA,DVI-D(Optional) |
| Power Input | DC 12V,4A 48W |
| Mechanical Specifications | |
| Construction | Steel housing & black Color, anti-vandal |
| Dimensions | 359.0x 270.0×46.3(mm) |
| Mounting | Embedded ,up and down; left-right fixing holes, vesa75x75;100×100 Wall Mounting Optional |
| Power source | AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature | -20~70ºC |
| Storage Temperature | -30~80ºC |
| Rating | Facilitate installation of the demolition,solid portfolio |
| Ordering Information | 15″ Industrial with anti-vandal anti glare touch with VGA Input and power adapter |
Features and Advantages
1. 800nits with low consumption industrial panels
2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed
3. Industrial control board supports the displays working 24 hours
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. VGA DVI interfaces
6. IR touch with anti-vandal glass with anti-glare treatment
7. 15 inch open frame IR touch is new and popular touch technology for outdoor kiosk , outdoor Automatic equipments etc
