| Display Specifications | |

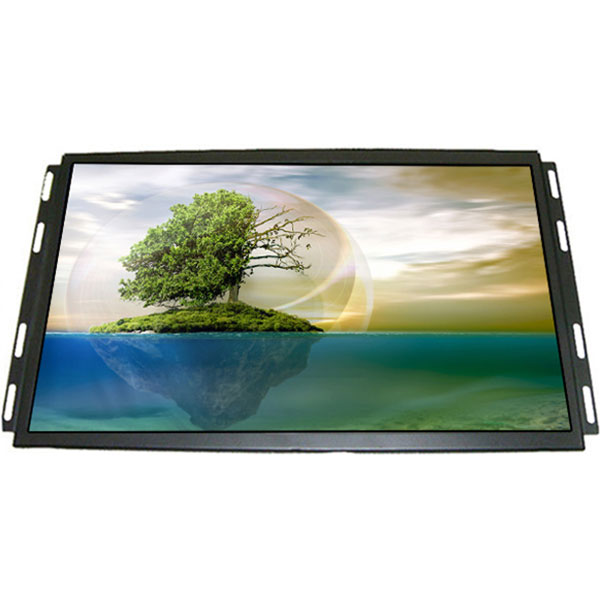

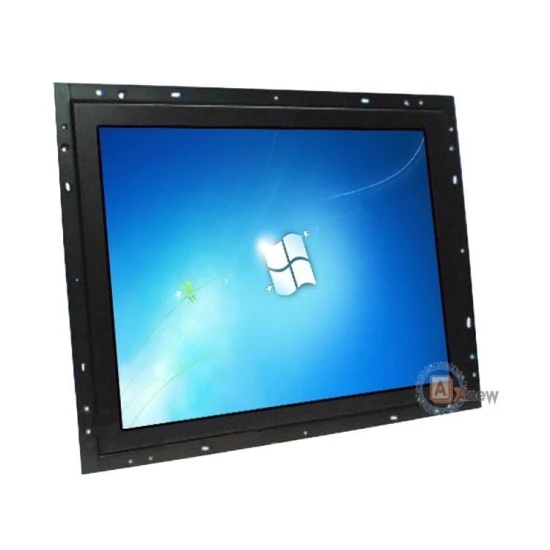

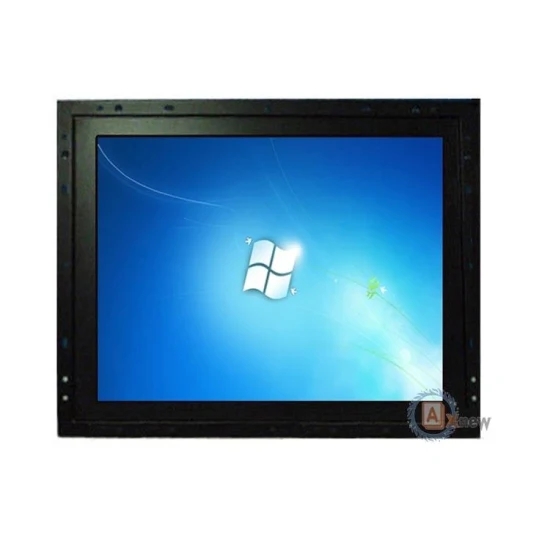

| Display | 15″ Color TFT Panel mount Monitor |
| Model Name | AXD-15OPPM-Pr |
| Active Display Area (mm) | 304.1(H)x304.1(V) |
| Pixel Pitch (mm) | 0.297(H)x0.297(V) |
| Resolution (Pixel) | XGA (1024X768) 262K/16.2M Color |
| Brightness (CD/m^2) | 400nits |
| Contrast Ratio | 800:1 |
| Viewing Angle (CR >=10) | 160/140 |
| Power consumption | 8.6W typical, normal operation |
| Touch Screen | Resistive;RS232/USB(Optional) |
| OSD Control | On the back side |
| I/O Connectors | 1x12v,1XVGA,DVI-D |
| Power Input | DC 12V,4A 48W |
| Mechanical Specifications | |
| Construction | Steel Metal chassis & Black Color |
| Dimensions | 398.0 x 295.0x 48 (mm) |

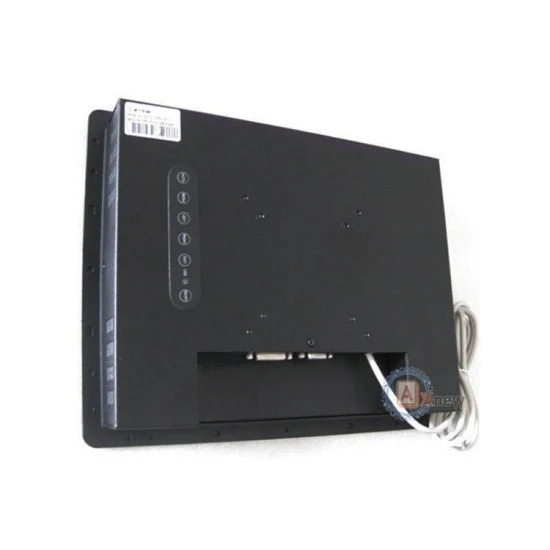

| Mounting | Edge fixing holes, vesa mounting on the backside |
| Power source | AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature | -20~85ºC |
| Storage Temperature | -30~85ºC |
| Rating | Facilitate installation of the demolition,solid portfolio |
| Ordering Information | 15″ Panel mount touch LCD Monitor with VGA input and power adapter( Protective glass) |
Features and Advantages
1. New and Industrial A grade perfect panels with LED backlight
2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed
3. industrial control board supports the displays working 24 hours
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. VGA DVI interfaces ; protective anti-vandal glass or Resistive touch with USB interface
6. 15 inch Panel mount touch lcd monitor for application control , automatic system and industrial terminals etc
