| Display Specifications | |
| Display | 15″ Color TFT Capacitive touch Monitor antivandal screen |
| Model Name | AXD-15OPN1P2-V2CF |
| Active Display Area (mm) | 305.7(H)x229.7(V) |
| Pixel Pitch (mm) | 0.297(H)x0.297(V) |
| Resolution (Pixel) | VGA (1024×768)6 bit + FRC |
| Brightness (CD/m^2) | 500nits |
| Contrast Ratio | 600:1 |
| Viewing Angle (CR >=10) | 160/150 |
| Power consumption | 10.6 W typical, normal operation |
| Touch Screen | Pro-Capacitive touch panel( USB Controller) |
| OSD Control | On the back side |

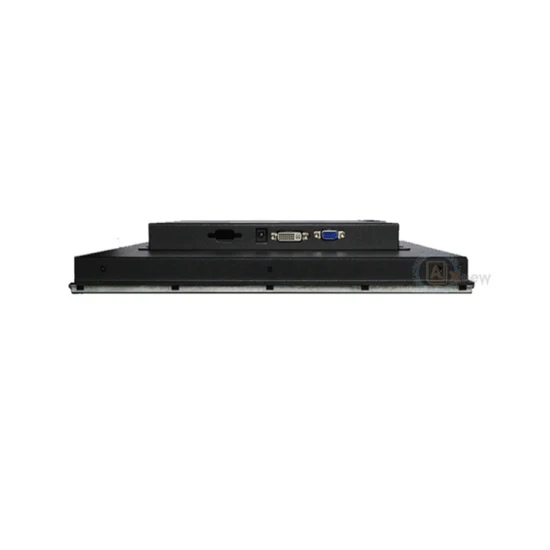

| I/O Connectors | 1x12v,1XVGA,DVI-D(Optional) |
| Power Input | DC 12V,4A 48W |
| Mechanical Specifications | |
| Construction | Steel housing & black Color, anti-vandal |
| Dimensions | 359.0x 270.0×46.3(mm) |
| Mounting | Embedded ,up and down; left-right fixing holes, vesa75x75;100×100 Wall Mounting Optional |
| Power source | AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature | -20~70ºC |
| Storage Temperature | -30~80ºC |
| Rating | Facilitate installation of the demolition,solid portfolio |
| Privacy film | Right Side 30+/-5 Degree;Left Side 30+/-5 Degree |
| Ordering Information | 15″ LCD with 3mm anti-vandal capacitive touch with VGA Input and power adapter |
Features and Advantages
1. New and Industrial A grade perfect panels , with super viewing angle, high brightness up to 500nits
2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed
3. industrial control board supports the displays working 24 hours
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. VGA DVI interfaces
6.custom monitor antivandal screen with 0.6mm privacy film installed on the front screen for special use
7. Projection capacitive touch with anti-vandal glass, could be 3mm eeti chipset witout any interference
8. 15 inch open frame capacitive touch is new and popular touch technology for financial industry ,banking , Automatic equipments etc
