Display Specifications | |
Display | 15.0″ Color TFT Sunlight readable monitor |
Model Name | AXD-15OPN2P1-VH4 |
Active Display Area (mm) | 305.7(H)x229.7(V) |
Pixel Pitch (mm) | 0.297 (H) x 0.297 (V) |
Resolution (Pixel) | 1024X768 |
Brightness (CD/m^2) | 1000cd/m^2 |
Contrast Ratio | 1000:1 |
Viewing Angle (CR >=10) | 160/120 |
Power consumption | 21.5 W typical, normal operation |
Touch Screen | NO ;Resistive, capacitive ;IR Touch ;RS232/USB(Optional) |
OSD Control | On the back side |

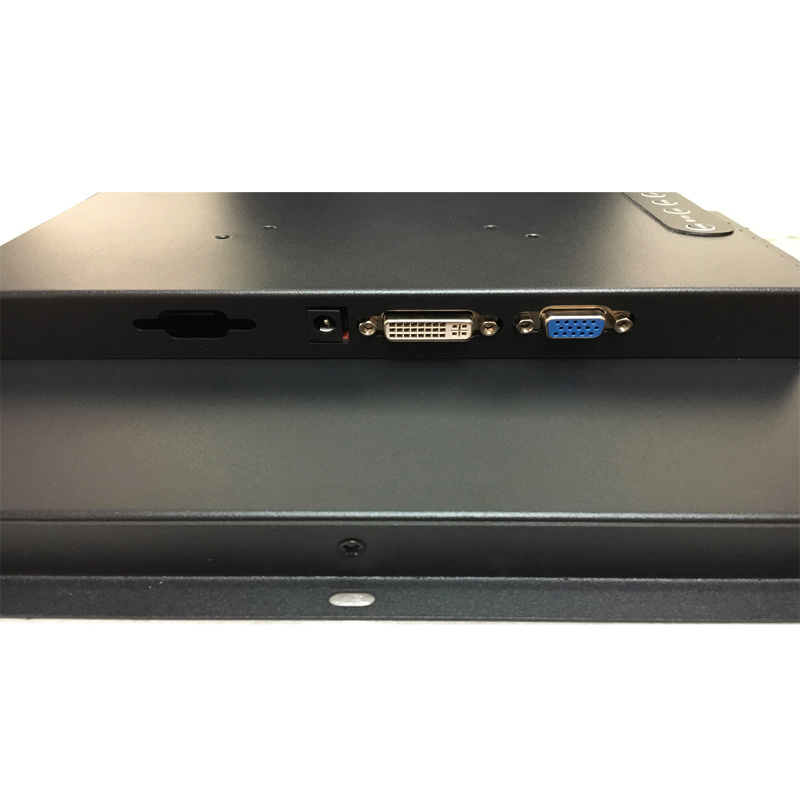

I/O Connectors | 1x12v,1XVGA,DVI-D |
Power Input | AC 100~240V,Universal,±10% ; AC/DC 12V4A |
Mechanical Specifications | |
Construction | Roasted Metal Frame |
Dimensions | 343x 294x 42.1(mm) |

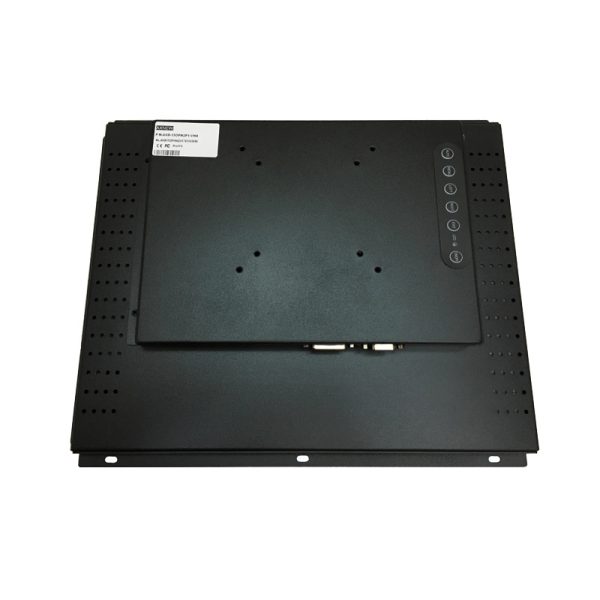

Mounting | Up and down fixing holes ,VESA 75×75(100×100) |
Power source | AC 100~240V/ 12V DC |
Environment Specifications | |
Operating Temperature | -20~70ºC |
Storage Temperature | -30~80ºC |
Dimming sensor | Optional dimmer from 250nits to 1000nits |
Ordering Information | 15″ Sunlight readable Monitor 1000nits square format |
15 Inch Sunlight Readable Display 1024X768 High Brightness 1000nits
Brand :
ScreenSize:15”
Display Resolution(pixel):1024×768
Contrast Ratio:1000:1
Brightness(CD/m^2):1000 cd/m2
Touch type:NO ;Resistive, capacitive ;IR Touch ;RS232/USB(Optional)
