Display

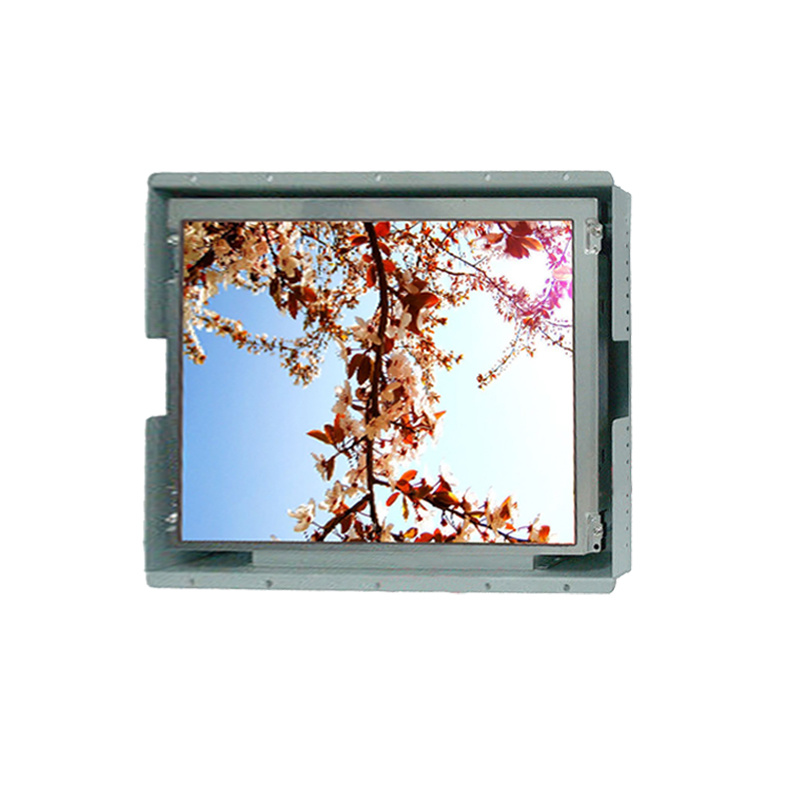

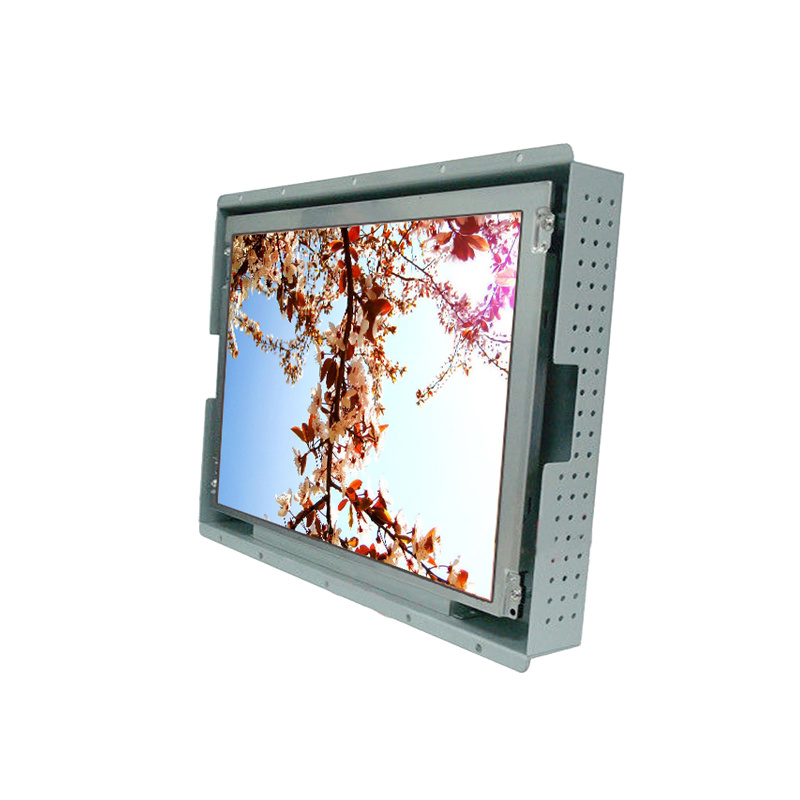

12.1″ Color TFT Sunlight readable LCD Monitor

Model Name

AXD-12OPN1P1-VH4

Active Display Area (mm)

246 (H)x184.5(V)

Pixel Pitch (mm)

0.3075(H)x0.3075(V)

Resolution (Pixel)

SVGA (800X600) 262K/16.2M Color

Brightness (CD/m^2)

1500nits

Contrast Ratio

700:1

Viewing Angle (CR >=10)

160/140

Power consumption

19.5W typical, normal operation

Touch Screen

Resistive ;IR Touch ;RS232/USB(Optional)

OSD Control

On the back side

I/O Connectors

1x12v,1XVGA,DVI-D(Optional)

Power Input

DC 12V,4A 48W

Mechanical Specifications

Construction

Steel open frame

Dimensions

Depending on the drawings

Mounting

Embedded ,Wall Mounting Optional

Power source

AC 100~240V/ 12V DC

Environment Specifications

Operating Temperature

-25~85ºC

Storage Temperature

-30~85ºC

Rating

Facilitate installation of the demolition,solid portfolio

Ordering Information

12.1″ 1500nits Monitor with VGA input and power adapter
