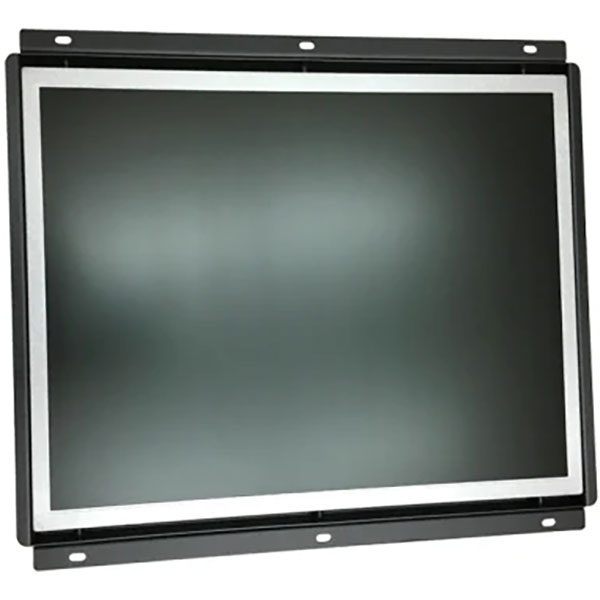

1500nits Super Bright 12 Inch Industrial Sunlight Readable LCD Display 800X600

Brand :

Model NO: AXD-12OPN1P1-VH4 (VGA/DVI)

Screen Size: 12 Inch

Display Resolution(pixel): 800X600

Contrast Ratio: 700:1

Brightness (CD/m^2): 1500cd/m^2

Touch type: Projected Capacitive

Application: Kiosks,Industrial machines,Automation,etc

Category:
Features and Advantages

1. New and Industrial A grade perfect panels with stable supply

2. Industrial control board supports the displays working 24 hours

3. Professional and industrial hardware and parts to guarantee its working normally in rough environment, Aluminum Front Bezel with rugged housing

4. Industrial design to protect the LCD screen, mounting on the outdoor application

5. VGA DVI interfaces

Display Specifications

Display

12.1″ Color TFT Sunlight readable LCD Monitor

Model Name

AXD-12OPN1P1-VH4

Active Display Area (mm)

246 (H)x184.5(V)

Pixel Pitch (mm)

0.3075(H)x0.3075(V)

Resolution (Pixel)

SVGA (800X600) 262K/16.2M Color

Brightness (CD/m^2)

1500nits

Contrast Ratio

700:1

Viewing Angle (CR >=10)

160/140

Power consumption

38W typical, normal operation

Touch Screen

Resistive ;IR Touch ;RS232/USB(Optional)

OSD Control

On the back side

I/O Connectors

1x12v,1XVGA,DVI-D(Optional)

Power Input

DC 12V,4A 48W

Mechanical Specifications

Construction

Steel open frame

Dimensions

Depending on the drawings

Mounting

Embedded ,Wall Mounting Optional

Power source

AC 100~240V/ 12V DC

Environment Specifications

Operating Temperature

-25~85ºC

Storage Temperature

-30~85ºC

Rating

Facilitate installation of the demolition,solid portfolio

Ordering Information

12.1″ 1500nits Monitor with VGA input and power adapter



Packaging&Delivery



Packing details

1x 12.1 inch Sunlight Readable LCD display;

Packed in 5 pieces/carton with protection foam

Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter

Delivery terms

7- working days for stock products after receiving payments;  15 working days for order production
