| Display Specifications | |

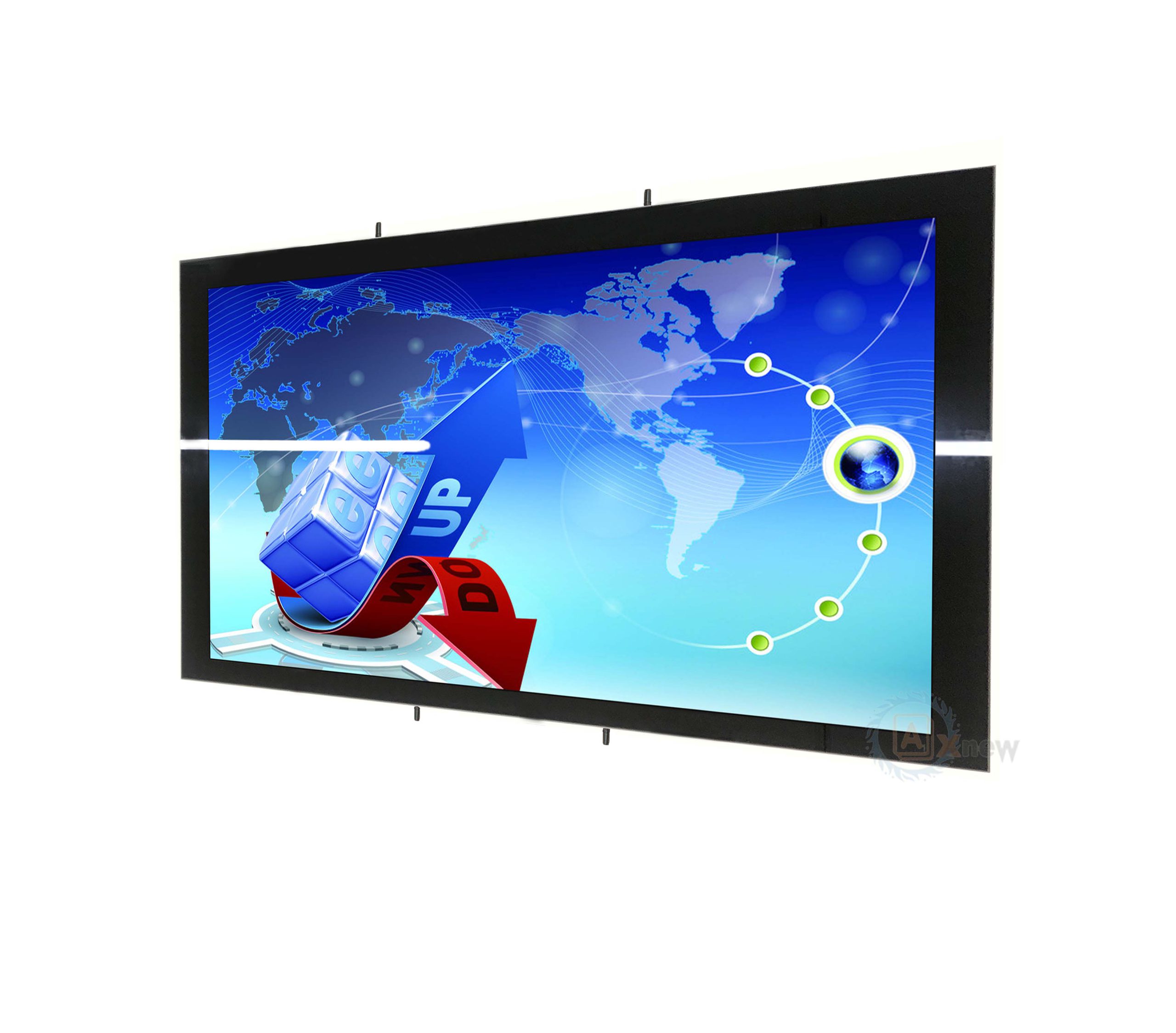

| Display | 17.3″ Multi touch LCD screen with open frame |
| Model Name | AXD-17OPEXT3-TP3 V2 |
| Active Display Area (mm) | 385.09 (H)x218.01(V) |
| Pixel Pitch (mm) | 0.1989 x 0.1989 |
| Resolution (Pixel) | WSXGA (1920X1080) |
| Brightness (CD/m^2) | 400cd/m^2 |
| Contrast Ratio | 600:1 |
| Viewing Angle (CR >=10) | 170/160 |
| Power consumption | 18.4 W typical, normal operation |
| Touch Screen | Pro-Capacitive Touch( Multi-touch) |
| OSD Control | On the back side |
| I/O Connectors | 1x12v,1XVGA,HDMI |
| Power Input | DC 12V,4A 48W |
| Mechanical Specifications | |
| Construction | Steel metal housing |
| Dimensions | 422.0x 247.0x 19.5(mm) |
| Mounting | Embedded ,fixing holes on the back frame |
| Power source | AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature | -10~60℃ |
| Storage Temperature | -20~70℃ |
| Rating | Facilitate installation of the demolition,solid portfolio |
| Ordering Information | 17.3” Touch lcd Open frame FHD with VGA input and power adapter |
