| Display Specifications |
|
Display |
17.0″ Color TFT High Brightness LCD monitor |
Model Name |
AXD-17OPN1P3-HT4 |
Active Display Area (mm) |
337.9 (H) x 270.3 (V) |
Pixel Pitch (mm) |
0.264 (H) x 0.264 (V) |
Resolution (Pixel) |
1280X1024 |
Brightness (CD/m^2) |
1000cd/m^2 |
Contrast Ratio |
1000:1 |
Viewing Angle (CR >=10) |
170/170 |
Power consumption |
29.5 W typical, normal operation |
Touch Screen |
NO ;Resistive, capacitive ;IR Touch ;RS232/USB(Optional) |
OSD Control |
On the back side |

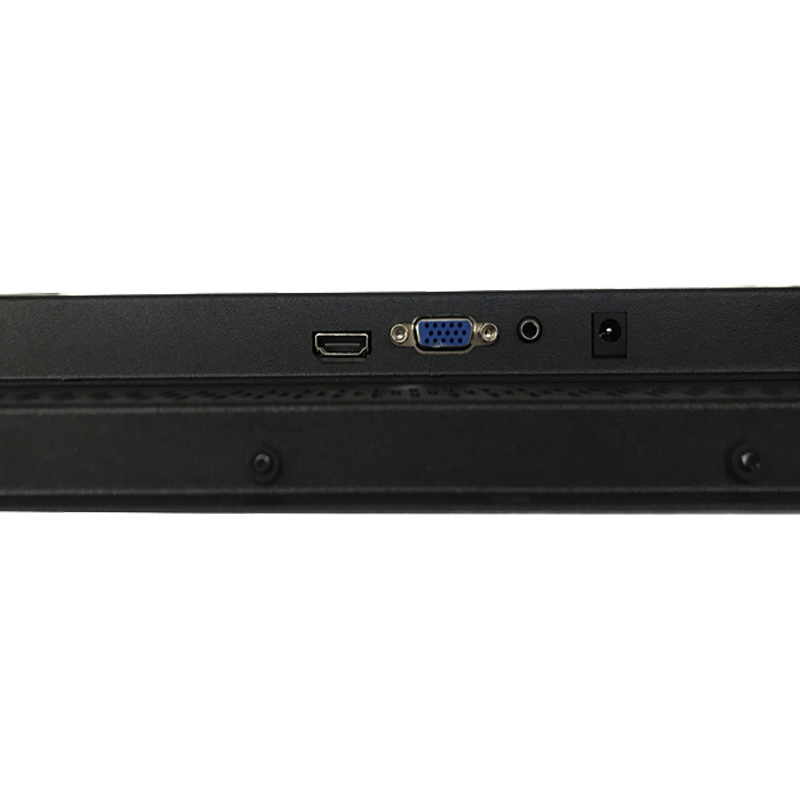

I/O Connectors |
1x12v,1XVGA,DVI-D |
Power Input |
AC 100~240V,Universal,±10% ; AC/DC 12V4A |
| Mechanical Specifications | |
Construction |
Roasted Metal Frame |
Dimensions |
361.5x 324.5x 40.0(mm) |
Mounting |
Up and down fixing holes ,VESA 75×75(100×100) |
Power source |
AC 100~240V/ 12V DC |
| Environment Specifications | |
Operating Temperature |
-5~50℃ |
Storage Temperature |
-20~60℃ |

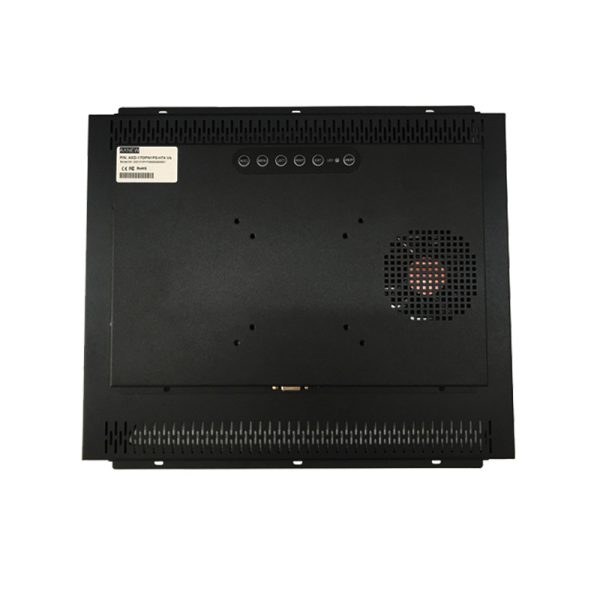

Cooling Fan |
one 12 V cooling fan inside |
Dimming sensor |
Optional dimmer from 250nits to 1000nits |
Ordering Information |
17” Sunlight readable Monitor 1000nits square format |
Features and Advantages
1. 17.0” high brightness New panels with 1280X1024, led backlight
2. Industrial control board with wide temperature supports the displays working 24 hours

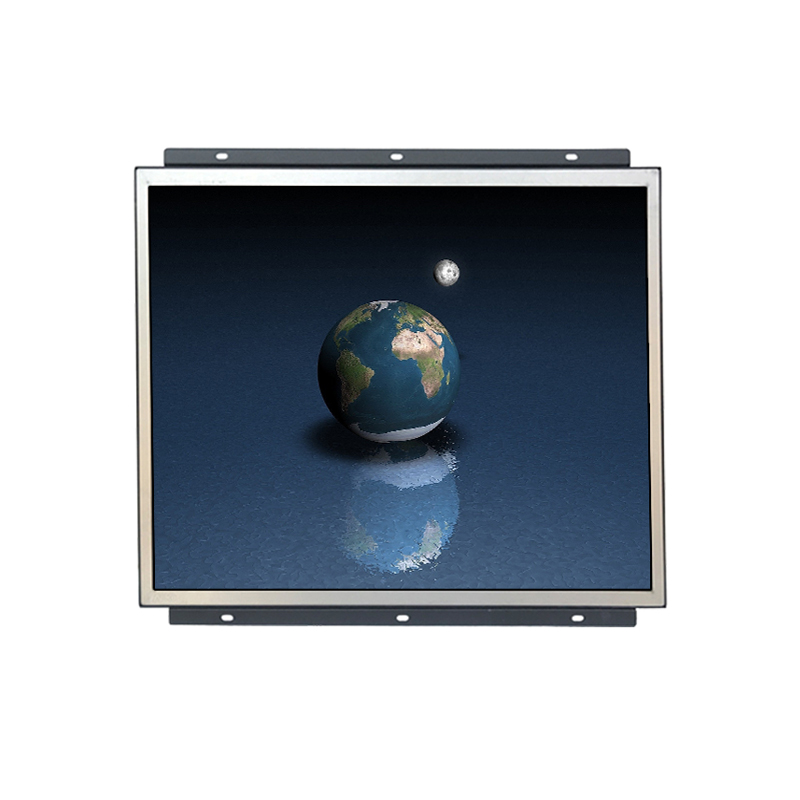

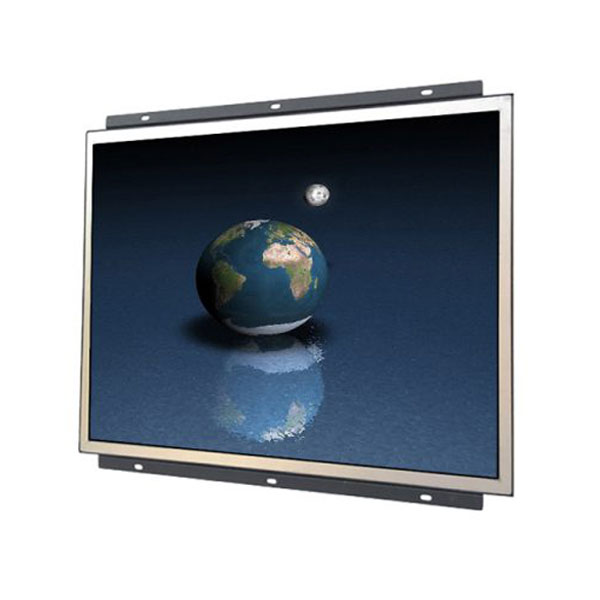

3. Open frame design to protect the LCD screen
4. Cooling fan on the backside to help heat radiation
5. VGA DVI interfaces ;No touch screen
6. 17.0 inch open frame monitor with high brightness 1000nits for outdoor advertising , outdoor player ,campus and industrial terminals etc
