| Specifications | |
| Display | 17.0″ Color TFT High Brightness LCD monitor |
| Model Name | AXD-17OPN1P3-HT4 |
| Active Display Area (mm) | 337.9 (H) x 270.3 (V) |
| Pixel Pitch (mm) | 0.264 (H) x 0.264 (V) |
| Resolution (Pixel) | 1280X1024 |
| Brightness (CD/m^2) | 1000cd/m^2 |
| Contrast Ratio | 1000:1 |
| Viewing Angle (CR >=10) | 170/170 |
| Power consumption | 29.5W typical, normal operation |
| Touch Screen | NO ;Resistive, capacitive ;IR Touch ;RS232/USB(Optional) |
| OSD Control | On the back side |

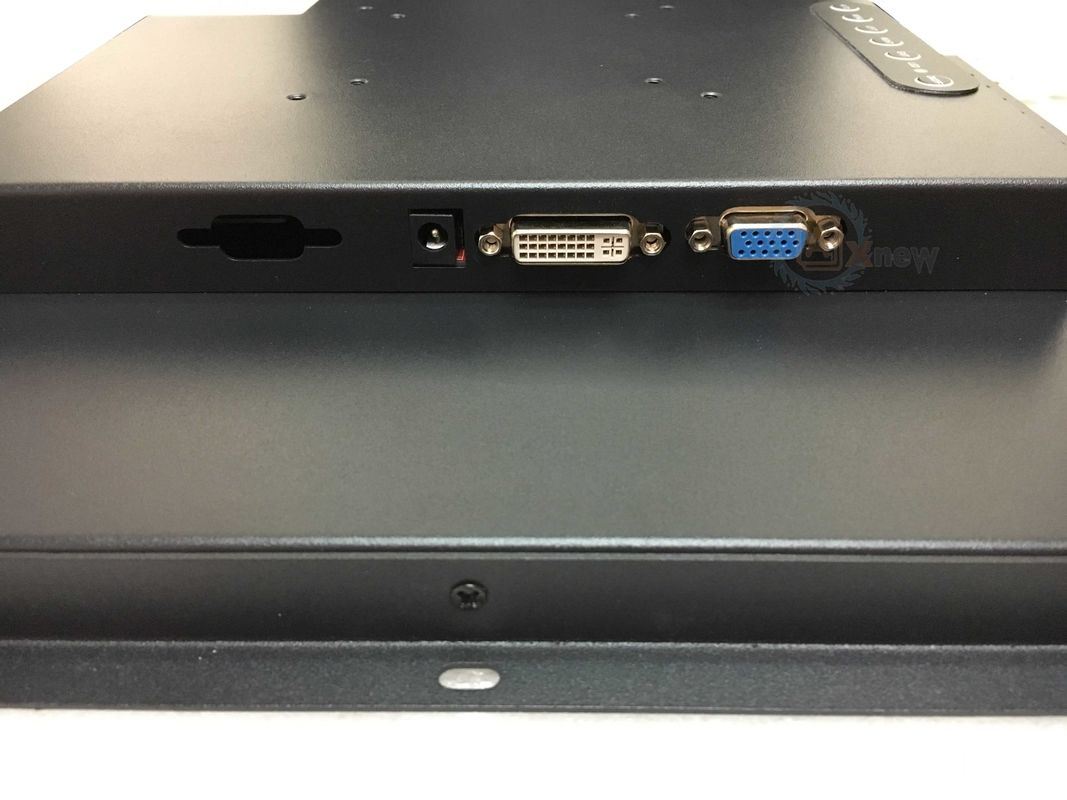

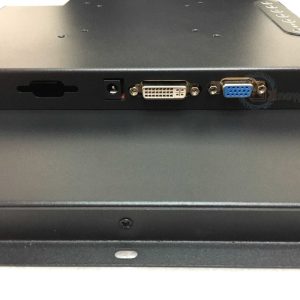

| I/O Connectors | 1x12v,1XVGA,DVI-D |
| Power Input | AC 100~240V,Universal,±10% ; AC/DC 12V4A |
| Mechanical Specifications | |
| Construction | Roasted Metal Frame |
| Dimensions | 361.5x 324.5x 40.0(mm) |
| Mounting | Up and down fixing holes ,VESA 75×75(100×100) |
| Power source | AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature | -5~50ºC |
| Storage Temperature | -20~60ºC |
| Cooling Fan | one 12 V cooling fan inside |
| Dimming sensor | Optional dimmer from 250nits to 1000nits |
| Ordering Information | 17″ Sunlight readable Monitor 1000nits square format |
