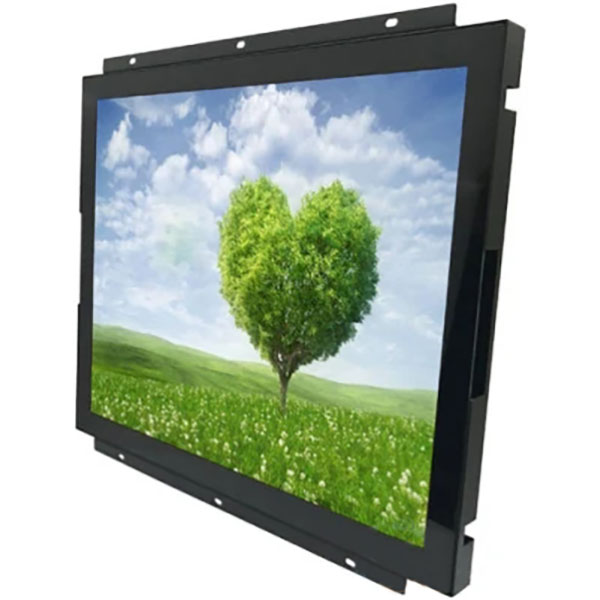

| Display | 17″ Color Industrial Monitor with IR touch (Anti-vandal) |
| Model Name | AXD-17OPIPN1P1-IR |
| Active Display Area (mm) | 337.92(H)x270.33(V) |
| Pixel Pitch (mm) | 0.264(H)x0.264(V) |
| Resolution (Pixel) | VGA (1280X1024) 262K/16.2MColor |
| Brightness (CD/m^2) | 300cd/m^2 |
| Contrast Ratio | 800:1 |
| Viewing Angle (CR >=10) | 160/160 |
| Power consumption | 25.8W typical, normal operation |
| Touch Screen | IR Touch ;RS232/USB(Optional) |
| OSD Control | On the back side |
| I/O Connectors | 1x12v,1XVGA,DVI-D(Optional) |
| Power Input | DC 12V,4A48W |
| Mechanical Specifications | |
| Construction | Aluminum front bezel &Black Color |
| Dimensions | 440.50 x 354.60x 56.80 (mm) |
| Mounting | Embedded ,VESA Mounting Optional |
| Power source | AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature | 0~80℃ |
| Storage Temperature | 0~80℃ |
| Rating | Facilitate installation of the demolition,solid portfolio |
| Ordering Information | 17” IP Monitor with VGA input and power adapter |
