| Display Specifications | |
| Display | 17″ Custom Capacitive touch Monitor with privacy flim |
| Model Name | AXD-17OPN1P2-VHT2 F |
| Active Display Area (mm) | 337.920(H)x270.336(V) |
| Pixel Pitch (mm) | 0.264(H)x0.264(V) |
| Resolution (Pixel) | XGA (1280X1024) 16.7M |
| Brightness (CD/m^2) | 800cd/m^2 |
| Contrast Ratio | 1000:1 |
| Viewing Angle (CR >=10) | 170/160 |
| Power consumption | 29.8W typical, normal operation |
| Touch Screen | |
| Types | capacitive touch screen with 3mm anti-vandal glass |
| Hardness | 6H |
| Touch Controller | eeti 3189 industrial chipset |
| Support O.S | Linux,Android, Windows XP/7/8/10 |
| OSD Control | On the back side |

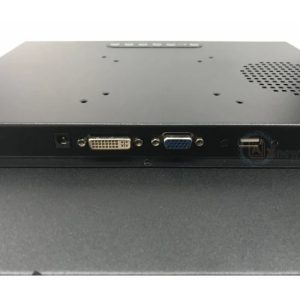

| I/O Connectors | 1x12v,1XVGA,DVI-D |
| Power Input | DC 12V,4A 48W |
| Mechanical Specifications | |
| Construction | Steel chassis & black Color |
| Dimensions | 378.5 x 337.0x 58.0(mm) |
| Mounting | Edge fixing holes,Vesa Mounting |
| Power source | AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature | 0~60ºC |
| Storage Temperature | -20~70ºC |
| Rating | Facilitate installation of the demolition, solid portfolio |
| Ordering Information | 17″ capacitive open frame Monitor with VGA input with privacy film |
Features and Advantages
1. New and Industrial A grade perfect panels with stable supply
2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed
3. industrial control board supports the displays working 24 hours
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. VGA DVI interfaces ;CapacitiveTouch screen with anti-vandal to protect the LCD
6. 17 inch open frame touch monitor for application control ,ATM device, banking kiosks etc
7, custom privacy film 180 degree.
