| Model Number | IX110217 17 inch |
| Minimum Order Quantity | 10 Pieces |
|---|---|
| Price | negotiation |
| Packaging Details | 10 Pcs /Carton with firm foam |
| Delivery Time | 3 days |
| Payment Terms | T/T, Paypal, Western Union |
| Supply Ability | 2000 pieces/month |
Specification
Electrical Specifications

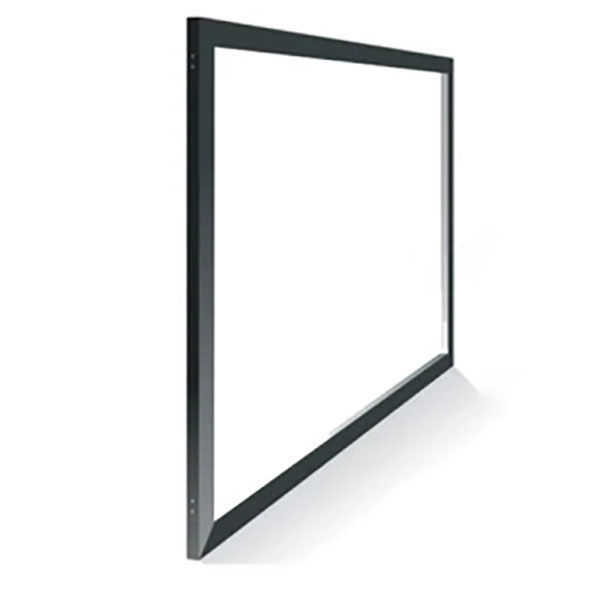

17 inch IR touch panel with IP65 front bezel for 4:3 format display.
Controller reported resolution 32768× 32768
Touch accuracy [mm] <1.5mm (central area), <2.5mm (edgy area)
Touch object diameter [mm] >4mm(single point),>8mm(two points )
Output Coordinates Calibration Not required or Simple four-point calibration, no drift
Response Time [ms] ≤12ms (1points) ≤15ms (two points)
Power requirements Powered by USB (DC5V± 5% @ 500mA)
Power consumption <1.5W
Interface Specifications Interface Type USB HID Plug and Play Plug and play and HID compatible Connector
Type USB Type A Environmental Specifications
Temperature Operating:-20~70ºC
Storage:-30~85ºC
Relative Humidity Operating:10%-90% RH, 40ºC non-condensing Storage:10%-90% RH, 40ºC non-condensing
Electrostatic Protection Per EN61000-4-2 2008: Level 4, Class B.
Contact discharge 8kV, air discharge 15kV on USB connector pins
Ambient Light Tolerance Direct light illumination ≤6.5K Lux (Color Temperature = 2700K) (Non-Direct)
Sunlight illumination ≤100K
Lux EMC CE, FCC Class B Compatible
Seal ability IP65
Software Specifications
Firmware Upgradability Yes
Device Type Touch (with gesture support per OS) or, Mouse (Click, drag, double click, right-click) Calibration Four-point calibration, no drift
Multi-Monitor Support Manually Binding Operating Systems Support Windows XP, Windows 7, Windows 8.1, Win1
