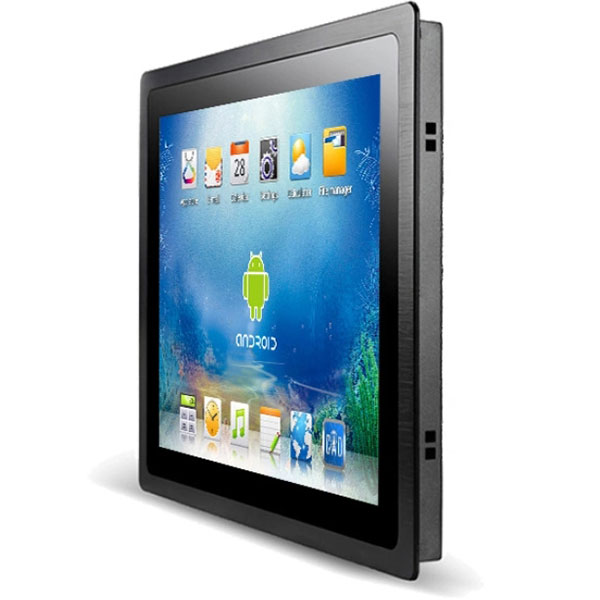

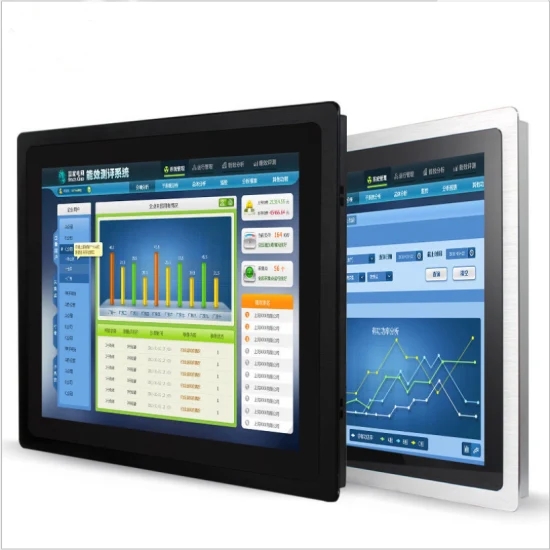

Panel PC information |
|
|
Model Number |
AXD-17PPC-V3C |
|
17′ Multi panel pc |
|
|
Case/Bezel Color |
Black |
|
TFT Type |
Industrial LCD with LED backlight |
|
Aspect ratio |
4:3 |
|
Touch Panel |
Industrial capacitive touch panel |
|
Touch response time |
10ms (typical) |
|
Optimal (native) Resolution |
1280×1024 |
|
LCD panel Pixel pitch |
0.296 x 0.296 mm |
|
LCD panel Colors |
16.7 million |
|
LCD panel Brightness |
300 cd/m2 |
|
LCD panel Response Time |
8ms |
|
Contrast Ratio |
800:1 |
|
Viewing Angle ( Wide ) |
|
|
Horizontal (left/right) |
±80° or 160° total |
|
Vertical (up/down) |
85°(up), 85°(down) or 170° total |
|
CPU |
Intel® Celeron 1037U Dual Core 1.86GHz |
|
storage |
16 G SSD ( optional) |
|
Serial Ports |
2 x COM ports |
|
USB Ports |
4 x USB |
|
LAN |
1 x LAN RJ-45 connector |
|
DC Power In |
1 x 4-pin connector |
|
Video Port |
2X Audio |
|
Other Ports |
2x LAN, 1XVGA,1xHDMI,1XLPT |
|
Internal Sockets & Connectors |
1 x Compact Flash socket (reserved for OEM project) |
|
Power Specification |
DC 12V |
|
Working Environment |
|
|
Temperature |
Operating: -10°C to 60°C ;Storage -20°C to 65°C |
|
Operating Humidity |
5 ~ 90% RH @40°C (non-condensing |
|
Vibration |
5 ~ 500Hz, 3Grms Random (with CF/SSD) |
|
Dimensions |
|
|

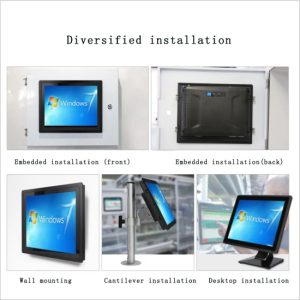

Mounting Type |
Embedded Installation |
|
Mechanical dimensions |
386.5 x 318.47 x 57.7 mm |
|
Weight (Net) |
7.5 kgs/ piece |
|
Drawings |
Please contact us for details |
Features and Advantages

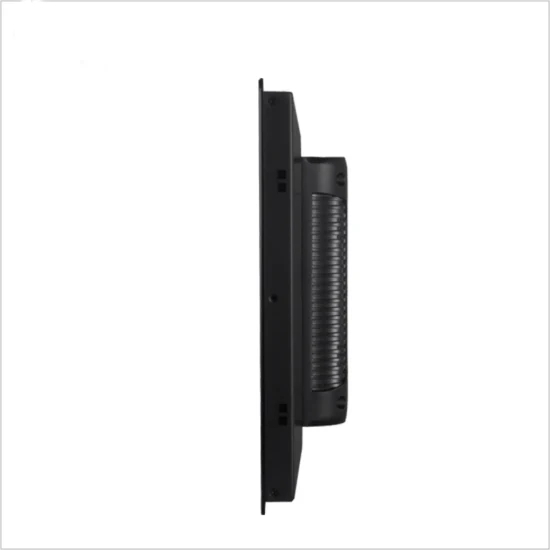

1. Fanless Design; Ultra Slim and Compact Mechanical Design
2. High Luminance LCD Panel
3. Intel® Celeron 1037u Dual Core 1.8GHZ
4. 17 “1280X1024 Resolution Color TFT LCD Display
5. Fully IP54 Compliant Stainless Steel Chassis
6. Supports Wide Range DC Power Input (12V)
