| Display Specifications | |

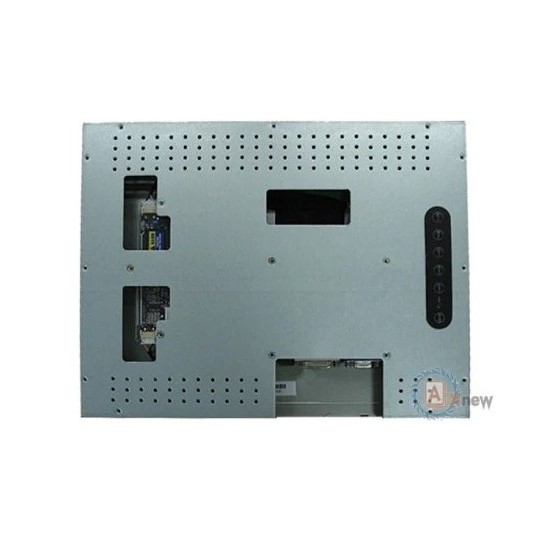

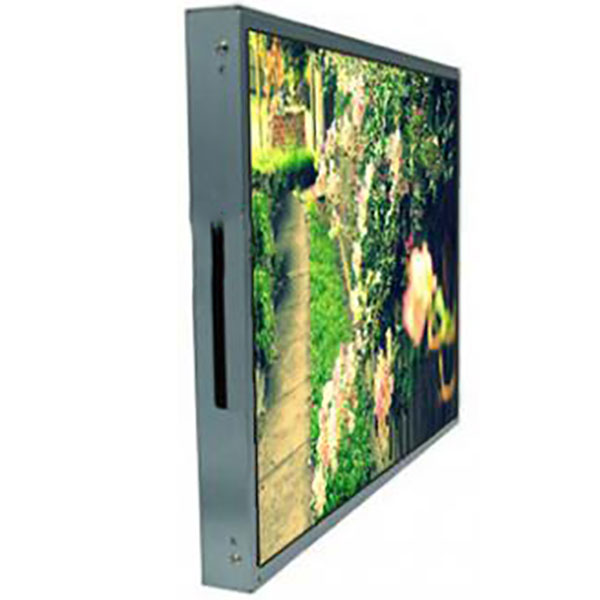

| Display | 17″ Color TFT Open Frame Resistive Monitor |
| Model Name | AXD-17OPN1P2-T1 |
| Active Display Area (mm) | 337.92(H)x270.33(V) |
| Pixel Pitch (mm) | 0.264(H)x0.264(V) |
| Resolution (Pixel) | SXGA (1280X1024) 262K/16.2M Color |
| Brightness (CD/m^2) | 300cd/m^2 |
| Contrast Ratio | 1000:1 |
| Viewing Angle (CR >=10) | 170/160 |
| Power consumption | 20.8W typical, normal operation |
| Touch Screen | Resistive; SAW ;RS232/USB(Optional) |
| OSD Control | On the back side |
| I/O Connectors | 1x12v,1XVGA,DVI-D(Optional) |
| Power Input | DC 12V,4A 48W |
| Mechanical Specifications | |
| Construction | Steel Metal chassis & Galvanized Color |
| Dimensions | 361.0 x 299.0x 34.0 (mm) |
| Mounting | embedded |
| Power source | AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature | -10~60℃ |
| Storage Temperature | -20~70℃ |
| Rating | Facilitate installation of the demolition,solid portfolio |
Features and Advantages
1. New and Industrial A grade perfect panels with stable supply
2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed
3. industrial control board supports the displays working 24 hours
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. VGA DVI interfaces ;5 wire resistive touch screen
6. 17 inch open frame monitor for application control , advertising player ,campus and industrial terminals etc
