| Display Specifications | |
| Display | 19″ Color TFT Projected capacitive touch open frame monitor |
| Model Name | AXD-19OPN1P1-C1 |
| Active Display Area (mm) | 376.3 (H)x301.1(V) |
| Pixel Pitch(mm) | 0.297 (H) x 0.297 (V) |
| Resolution (Pixel) | 1280X1024 |
| Brightness (CD/m^2) | 300cd/m^2 |
| Contrast Ratio | 1000:1 |
| Viewing Angle (CR >=10) | 170/170 |
| Power consumption | 19.5 W typical, normal operation |
| Touch Screen | 3.9mm projected-capacitive Touch;USB Port;eeti |
| Construction | G+G Cover glass |
| Durability | 50 Million touches(min) |
| OSD Control | On the back side |

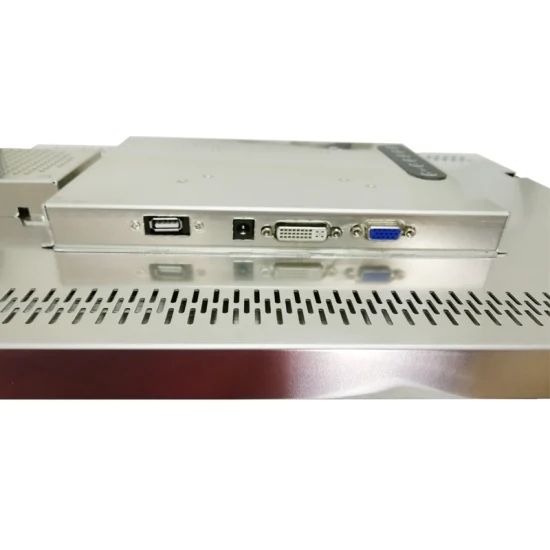

| I/O Connectors | 1x12v,1XVGA,DVI-D |
| Power Input | AC 100~240V,Universal,±10% ; AC/DC 12V4A |
| Mechanical Specifications | |
| Construction | Roasted Metal Frame |
| Dimensions | 432.0 x 339.0×49.8 (mm) |
| Mounting | VESA 100X100 |
| Power source | AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature | -5~60ºC |
| Storage Temperature | -70~70ºC |
| Ordering Information | 19″ projected-capacitive touch monitor |
Features and Advantages
1.New and A grade perfect panels with 1280X1024
2. industrial control board supports the displays working 24 hours
3. Projected capacitive touch with 3mm anti-vandal function
