| Display Specifications | |
| Display | 19″ Color TFT Industrial saw touch screen LCD Monitor |
| Model Name | AXD-19OPN3P1 |
| Active Display Area (mm) | 376.3 (H)x301.1(V) |
| Pixel Pitch (mm) | 0.294(H)x0.294(V) |
| Resolution (Pixel) | SXGA (1280X1024) 16.7 M |
| Brightness (CD/m^2) | 300cd/m^2(Typ.) |
| Contrast Ratio | 1000:1 |
| Viewing Angle (CR >=10) | 170/160 |
| Power consumption | 18.5W typical, normal operation |
| Touch Screen | |
| Type | SAW Touch(Anti-vandal,IP6front bezel) |
| Surface Hardness | 6H |
| Durability | 50 Million Multi-touch |
| Transparency | 92% |

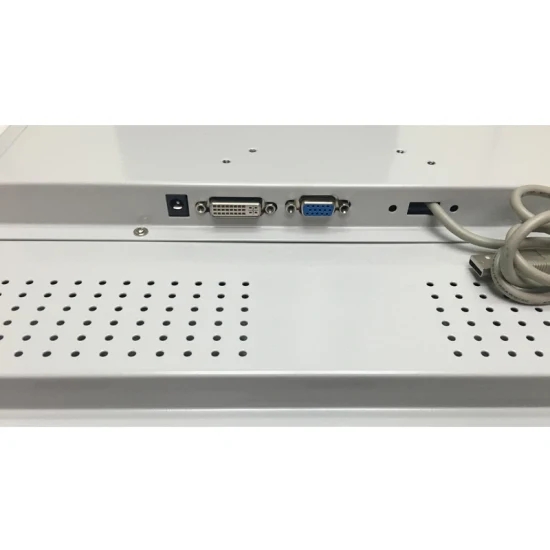

| I/O | RGB analog(VGA)x1, DVI-Dx1;12V DC2.1 Jackx1;USBx1( for the touch connection only) |
OSD |
6 Keys on the backside |
| Voltage Consumption | AC 100~240V,Universal,±10% ; AC/DC 12V4A |
| 3.3W typical, normal operation |
| Mechanical Specifications | |
| Construction | Steel chassis & Black Color |
| Dimensions | 455.5x 378.0X51.5 (mm) |
| Mounting | Edge locking ,fixing holes embedded |
| Environment Specifications | |
| Operating Temperature | -10~60℃ |
| Storage Temperature | -20~70℃ |
| Ordering Information | 19” touch Monitor 350nits With SAW Touch AXD-19OPN3P1 |
