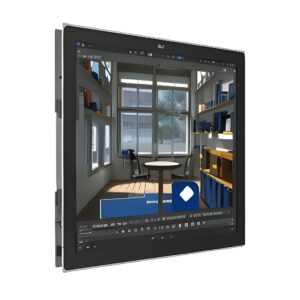

19 inch 5:4 Industrial SXVGA Touch Panel with Rugged pc

Model: AXD-19PPC-A5C Screen Size:19’’
Screen format: 5:4 Display Resolution(pixel):1280X1024
Contrast Ratio:1000:1 Brightness:300cd/m^2
Operating temperature : -10℃~60℃ Touch Type: Pro-CapacitiveTouch screen
Power Input: DC 12V Product status: in production



Specifications datasheet

Panel PC information
Model Number AXD-19PPC-V4C2
19’’ Flat design Industrial Touch panel pc
Case/Bezel Color Black/Silver edge
TFT Type Industrial LCD with LED backlight
Aspect ratio 5:4
Touch Panel Projected-capacitive Touch Flat Screen
Touch response time 10ms (typical)
Optimal (native) Resolution 1280×1024
LCD panel Pixel pitch 0.297 x 0.297mm
LCD panel Colors 16.7 million
LCD panel Brightness 300 cd/m2
LCD panel Response Time 8ms
Contrast Ratio 1000:1
Viewing Angle ( Wide )
Horizontal (left/right) ±85° or 170° total
Vertical (up/down) 70°(up), 80°(down) or 150° total
CPU Soldered onboard Intel® Dual Core I3-8500U Dual core

2.5GHZ Processor; DDR4 1600MHz SDRAM

storage Brand new SATA SSD socket(64G/128G/256G)
Serial Ports 2 x COM ports (1x RS-232/422/485 by-pin connector)
USB Ports 4 x USB external ports ; 6 six USB internal ports
LAN 1 x LAN RJ-45 connector
Net 1 x Realtek 8111Gigabit Ethernet controller
DC Power In 1 x 4-pin connector
Video Port 1 x VGA female connector; 1X HDMI
Internal Sockets & Connectors 1 x Compact Flash socket (reserved for OEM project)
Power Specification DC 12V 6A
Working Environment
Temperature Operating: -10°C to 60°C ;Storage -20°C to70°C
Operating Humidity 5 ~ 90% RH @40°C (non-condensing
Shock Operating 16G, 11ms & Non-operating 4G, 20ms (with
Dimensions
Mounting Type Embedded Installation/ Wall mount
Mechanical dimensions 461.5x 357 x 49.6 mm
Weight (Net) 6kgs/ piece
Drawings Please contact us for details



Order Information Model Number: 1)AXD-19PPC-V4C2 I3-7200U (8G+128G)

2) AXD-19PPC-V4C3 I7-8500U( 8G+128G)

Other Details Minimum Order Quantity: 2 Pieces

Price: Depends on product and order quantity

Packaging Details: 2 Pcs /Carton with firm foam

Delivery Time: 7-15 working days

Features and Advantages
1. Embedded with fanless design for all in one
2. 19 inch 1280×1024 A new grade with long use backlight
3. Intel® Dual Core I3-7200U/8500U 2.5GHz Processor
4. Using multi touch PCAP touch panel, high sensitive and fast-response
5. Fully IP65 Waterproof front Compliant Stainless Steel Chassis
6. Supports Wide Range DC Power Input with industrial power connector,4 Pin aviation plugs sockets, Shock – proof.
7, The AXD-19PPC-V4C industrial panel PC is extensively utilized in kiosks and automated devices, owning its robust IP front protection, supporting 24(H)x7Days.
