| Display Specifications | |

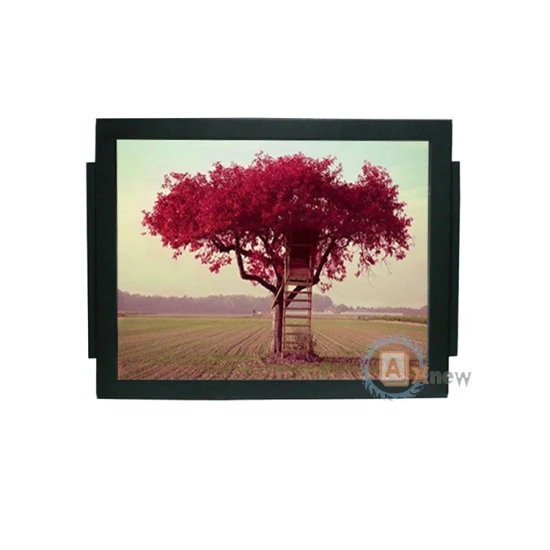

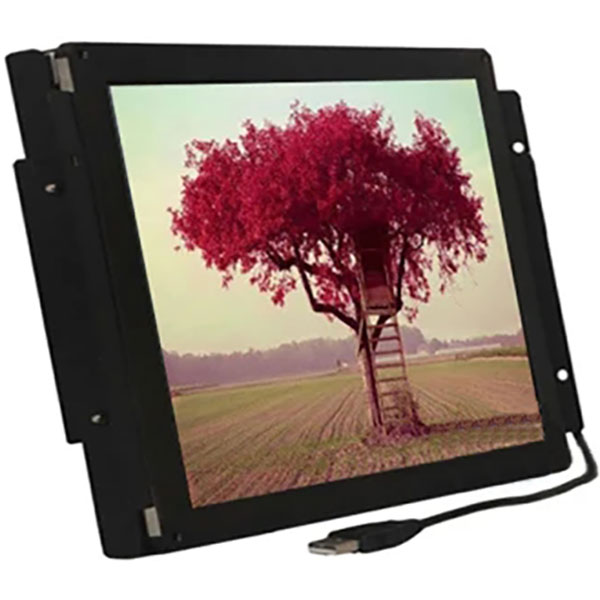

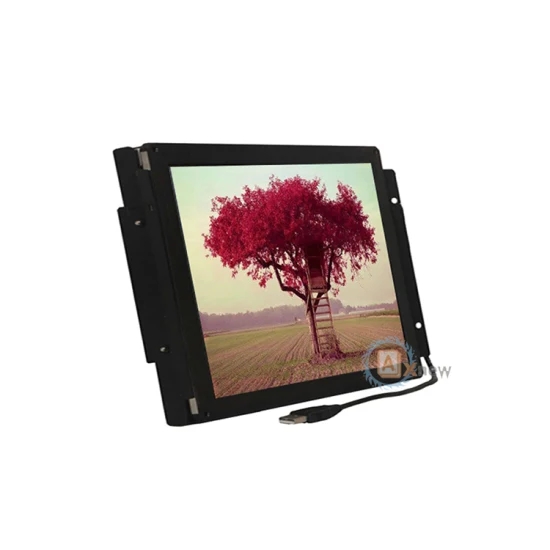

| Display | 19″ Color TFT PCAP Sunlight Readable touch Monitor |
| Model Name | AXD-19OPN1P2-VHT2 |
| Active Display Area (mm) | 376.3 (H)x301.1(V) |
| Pixel Pitch (mm) | 0.294(H)x0.294(V) |
| Resolution (Pixel) | SXGA (1280X1024) 16.7 M (6 bit + FRC) |
| Brightness (CD/m^2) | 600cd/m^2 |
| Contrast Ratio | 1000:1 |
| Viewing Angle (CR >=10) | 178/178 |
| Power consumption | 53.5W typical, normal operation |
| Touch Screen | PCAP touch with Anti-vandal Glass;AR/AG Function |
| OSD Control | On the back side |

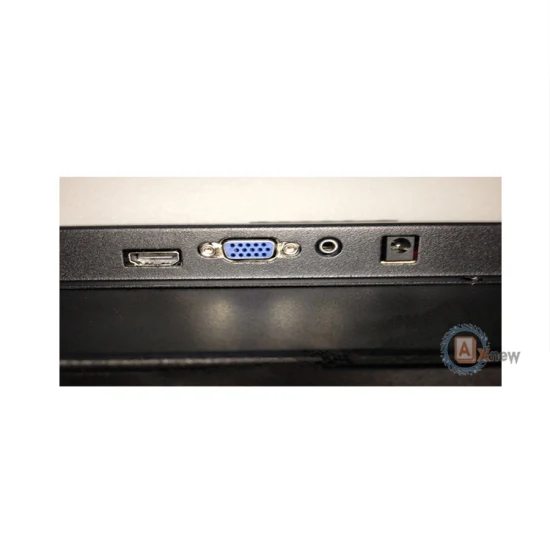

| I/O Connectors | 1x12v,1XVGA,DVI-D(Optional) |
| Power Input | DC 12V,6A 72W |
| Mechanical Specifications | |
| Construction | Steel chassis & Black Color |
| Dimensions | 432.0 x 339.0×49.8 (mm) |
| Mounting | Edge locking ,fixing holes embedded |
| Power source | AC 100~240V/ 12V DC-6A |
| Environment Specifications | |
| Operating Temperature | -20~75ºC |
| Storage Temperature | -30~85ºC |
| Rating | Facilitate installation of the demolition, solid portfolio |
| Ordering Information | 19″ PCAP touch Monitor 600nits with VGA input and power adapter |
Packaging & Delivery
| Packing details | 1x 19 inch PCAP Sunlight Readable LCD display; Packed in 2 piece/carton with protection foam Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter |
| Delivery terms | 7- working days for stock products after receiving payments; 15 working days for order production |
Features and Advantages
1. New and Industrial A grade perfect panels with stable supply
2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed
3. industrial control board supports the displays working 24 hours
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. VGA DVI interfaces ;Pro-capacitive Touch screen with anti-vandal to protect the LCD
6. 19 inch high brightness open frame touch monitor for application control , advertising player ,campus and industrial terminals etc
7.Custom Anti-reflective/Anti-glare protecitve glass bonded on the screen
