| Display Specifications |
|
| Display |

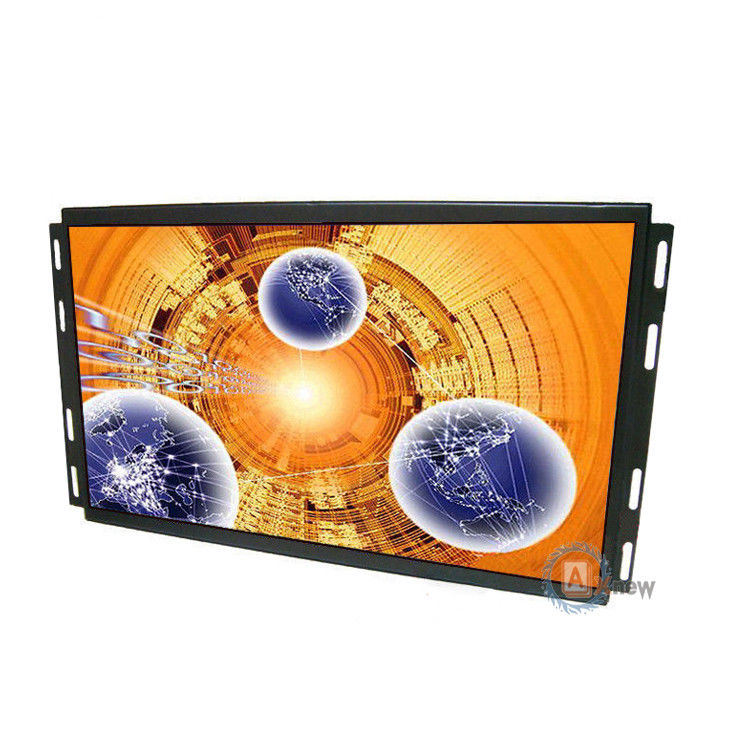

20 ” Color LED Monitor |
| Model Name |
AXD-20OPN1P1-VH2 |
| Active Display Area (mm) |
442.8 (H) x 249.1 (V) |
| Pixel Pitch (mm) |
0.09225 (H) x 0.27675 (V) |
| Resolution (Pixel) |
1600X900 |
| Brightness (CD/m^2) |
700cd/m^2 |
| Contrast Ratio |
1000:1 |
| Viewing Angle (CR >=10) |
85/85/75/85 |
| Power consumption |
28.5 W typical, normal operation |
| Touch Screen |
Resistive, capacitive ;IR Touch ;RS232/USB(Optional) |

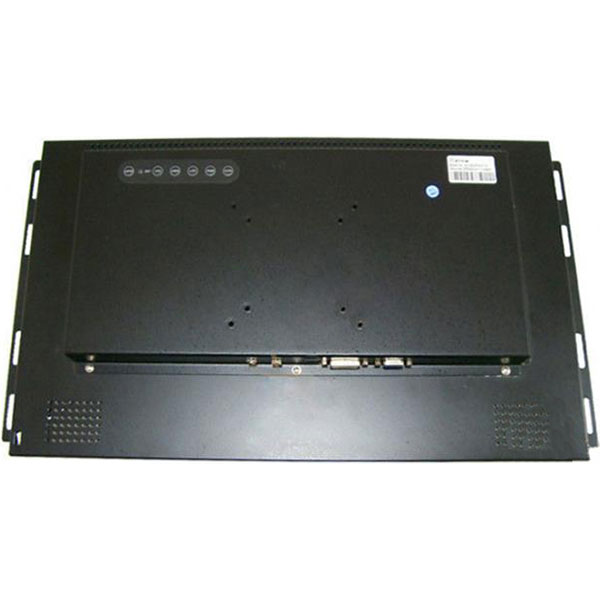

| OSD Control |
On the back side |

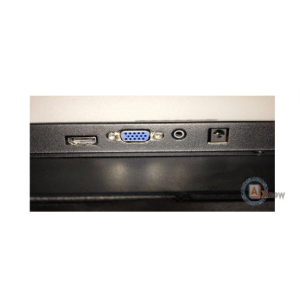

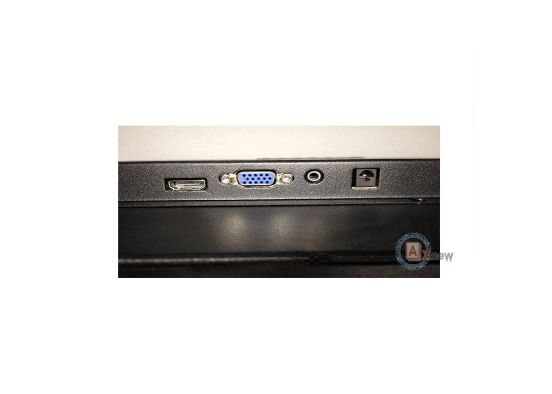

| I/O Connectors |
1x12v,1XVGA,DVI-D(Optional) |
| Power Input |
DC 12V,4A 48W Adapter |
| Mechanical Specifications |
|
| Construction |
Open frame steel metal material ,black color |
| Dimensions |
496.2x 285.7x 45.0(mm) |
| Mounting |
Embedded ,right and left ; VESA 75×75(100×100) Wall Mounting Optional |
| Power source |
AC 100~240V/ 12V DC |
| Environment Specifications |
|
| Operating Temperature |
-10~70℃ |
| Storage Temperature |
-10~70℃ |
| Rating |
Facilitate installation of the demolition, solid portfolio |
| Ordering Information |
20.0” Sunlight Readable LED Monitor with VGA input and power adapter |
Features and Advantages
1. High Resolution with high contract LCD in stable supply
2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed
3. industrial control board supports the displays working 24 hours
4. 170/160 wide viewing angle with high performance
5. VGA DVI interfaces ; touch screen options if requested
6. 20 inch open frame monitor for application control , advertising player ,campus and industrial terminals etc
