| Panel PC information | |
| Model Number | AXD-21OPN1P1-PPC |
| 21.5” Andriod Capacitive Touch panel pc with 1000nits | |
| Case/Bezel Color | Black |
| TFT Type | New A+ LCD with LED backlight |
| Aspect ratio | 16:9 |
| Useful Screen Area | 476.64 (H)x268.11(V) |
| Touch Panel | Capacitive Multi touch with EETI chipset (water-proof function) |
| Touch response time | 10ms (typical) |
| Touch glass Treatment for Outdoor | Anti-glare /anti-reflective treatment on surface |
| LCD panel Pixel pitch | 0.297 x 0.297 mm |
| LCD panel Colors | 16.7million |
| LCD panel Brightness | 600 cd/m2 |
| LCD panel Response Time | 8 ms |
| Contrast Ratio | 1000:1 |
| Viewing Angle ( Wide ) | |
| Horizontal (left/right) | ±89° or 178° total |
| Vertical (up/down) | 89°(up), 89°(down) or 178° total |

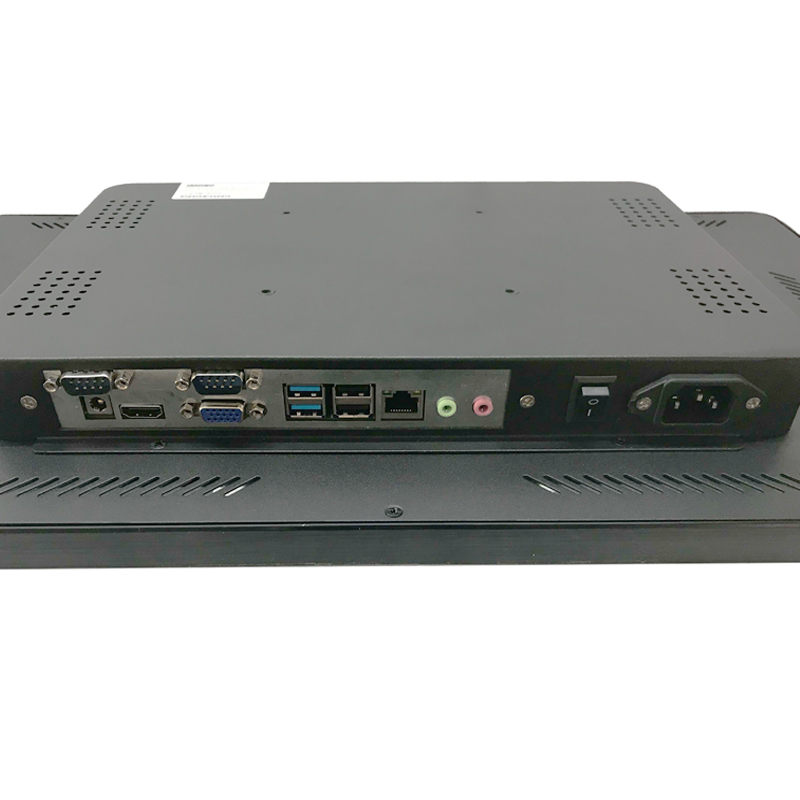

| Output Interface | VGA/HDMI type/ AV/Rs232 Options |
| Input Interface | USB*3 |
| Net | Internet LAN |
| Watch Dog Technology | Support |
| Power Specification | External AC to DC power brick |
| Monitor input: +12VDC ±5%,5.0 A; DC Jack (2.5) | |
| AC to DC power brick input: 100-240 VAC, 50/60 Hz | |
| Power dissipation: 44W max | |
| ECM (Embed Computer Module) | RK3288 Max frequency 1.8Ghz;
MAIL-T764 GPU ; ARM Quad CORTEX-A17 |
| Temperature | Operating: -10°C to 50°C ;Storage -20°C to 60°C |
| Humidity (non condensing) | Operating: 20%-90%; Storage: 10%-95% |
| Weight (approx.) | Actual: 7kg ;Shipping: 8kg |
| Dimensions | |

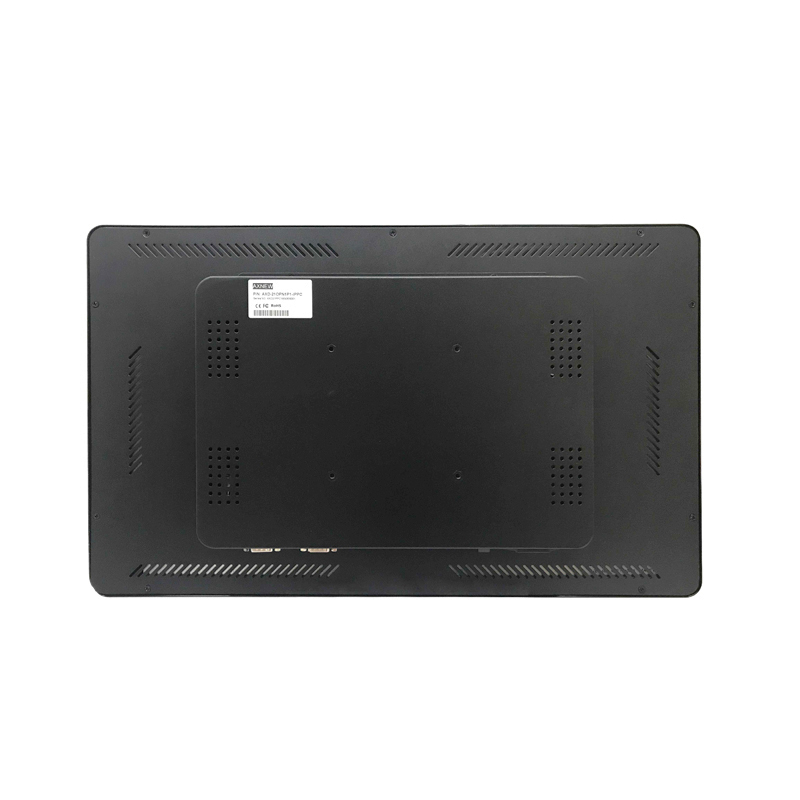

| Holes fixings | Vesa mounting 100×100 |
| Drawings | Please contact us for details |
