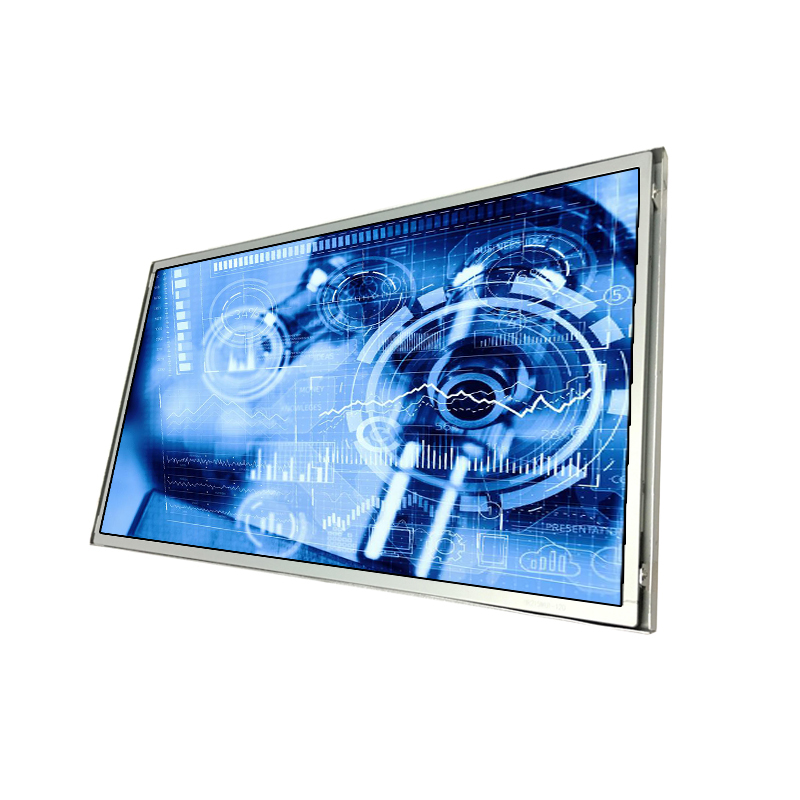

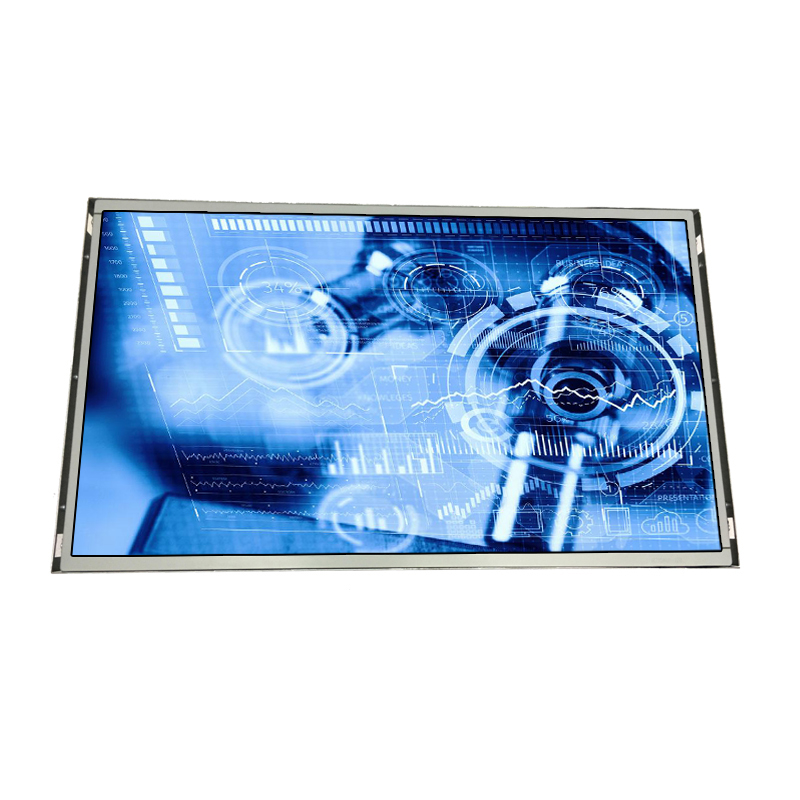

21.5 Inch HD IPS Sunlight Readable LCD Monitor 1920X1080 For Outdoor Advertising

Brand :

Model: AXD-21OPN1P1-VH3

Screen Size:21.5’’

Screen format: 16:9 Display

Resolution(pixel):1920X1080

Contrast Ratio:1000:1

Brightness: 1000cd/m^2

Storage temperature : 0℃~60℃

Input signal: VGA DVI

Power Input: DC 12V

Product status: Stock



Display Specifications
Display

21.5″ Open frame Monitor IPS

Model Name

AXD-21OPN1P1-VH3

Active Display Area (mm)

476.64 (H)x268.11(V)

Pixel Pitch (mm)

0.282(H)x0.282(V)

Resolution (Pixel)

WSXGA (1920X1080)

Brightness (CD/m^2)

1000cd/m^2

Contrast Ratio

1000:1

Viewing Angle (CR >=10)

89/89/89/89 super wide viewing angle

Power consumption

33.6 W typical, low consumption ,normal operation

Touch Screen

Resistive RS232/USB(Optional)

OSD Control

On the back side

I/O Connectors

1x12v,1XVGA,DVI-D(Optional)

Power Input

DC 12V,4A48W

Mechanical Specifications
Construction

Steel metal housing

Dimensions

522.0x 294.6x 33.0(mm)

Mounting

Embedded ,fixing holes on the edging frame

Power source

AC 100~240V/ 12V DC

Environment Specifications
Operating Temperature

0~50

Storage Temperature

0~60

Rating

Facilitate installation of the demolition,solid portfolio

Ordering Information

21.5” 1000nits Open frame FHD IPS Technology with VGA input and power adapter

21.5" HD IPS Sunlight Readable LCD Monitor 1920X1080 For Outdoor Advertising
