| Display Specifications | |

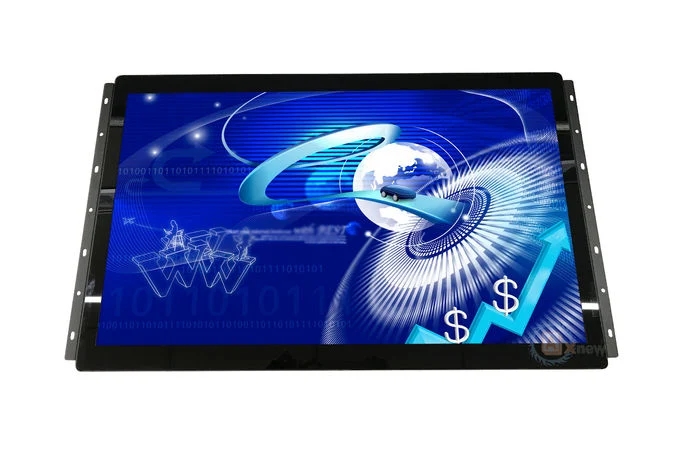

| Display | 24″ Color TFT capacitive touch Monitor |
| Model Name | AXD-24OPN1P1-VU 2 |
| Active Display Area (mm) | 522.4(H)x328.0(V) |
| Pixel Pitch (mm) | 0.270(H)x0.270(V) |
| Resolution (Pixel) | 1920×1080 16.7M colors |
| Brightness (CD/m^2) | 275cd/m^2 after touch |
| Contrast Ratio | 3000:1 |
| Viewing Angle (CR >=10) | 178/178 |
| Power consumption | 26.8W typical, normal operation |
| Touch Screen | multi touch 10 point capacitive touch panel with eeti 3189 chipset |
| OSD Control | On the back side |

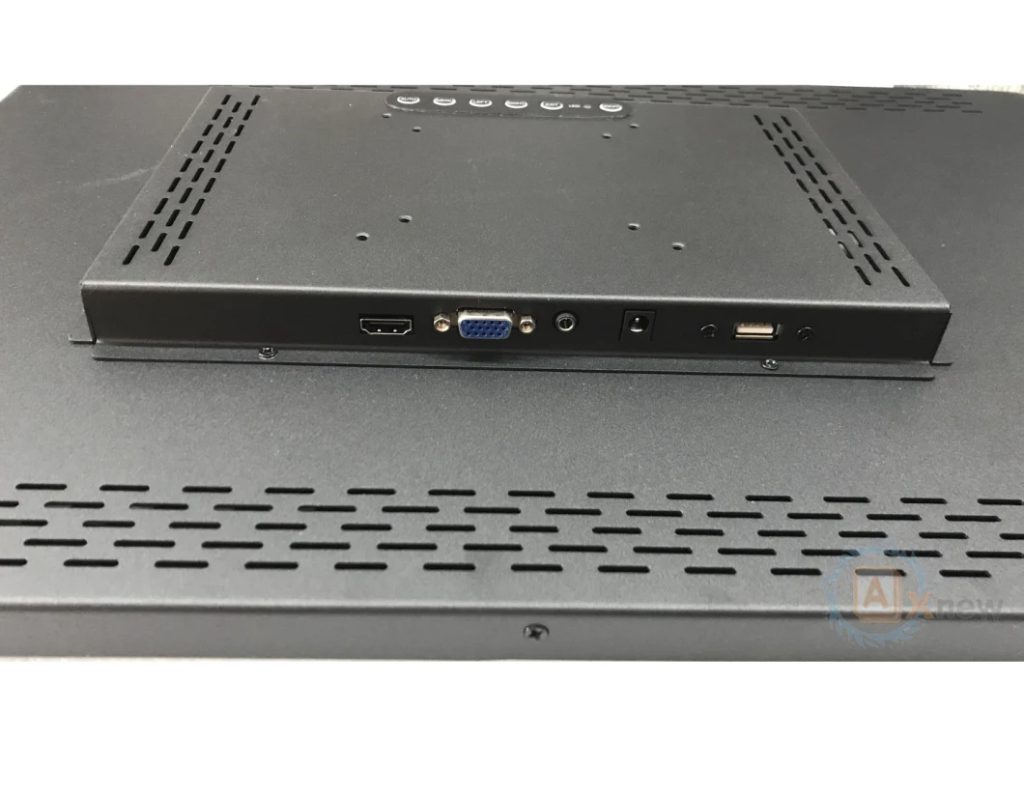

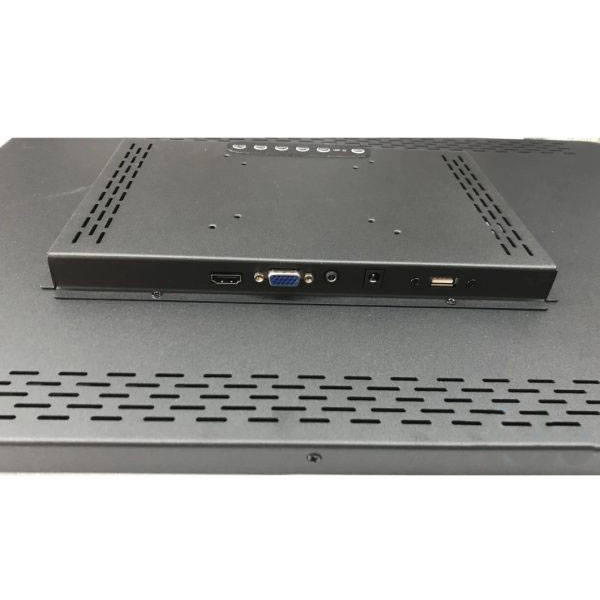

| I/O Connectors | 1x12v,1XVGA,H-dmI,Audio,etc |
| Power Input | DC 12V, 4A 48W |
| Mechanical Specifications | |
| Construction | Steel metal chassis & black Color |
| Dimensions | Accords with the drawings |
| Mounting | Edge fixing holes,Vesa(75×75,100×100) Mounting |
| Power source | AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature | 0~50ºC |
| Storage Temperature | -20~70ºC |
| Rating | Facilitate installation of the demolition,solid portfolio |
| Ordering Information | 24″ hd Capacitive touch Monitor with HDMI input and power adapter |
Packaging & Delivery
| Packing details | 1x 24 inch Touch Screen LCD display; Packed in 2 pieces/carton with protection foamOptional accessories: 1xVGA, 1x Power supply cable, 1x power adapter |
| Delivery terms | 7- working days for stock products after receiving payments; 15 working days for order production |
