| Display Specifications | |

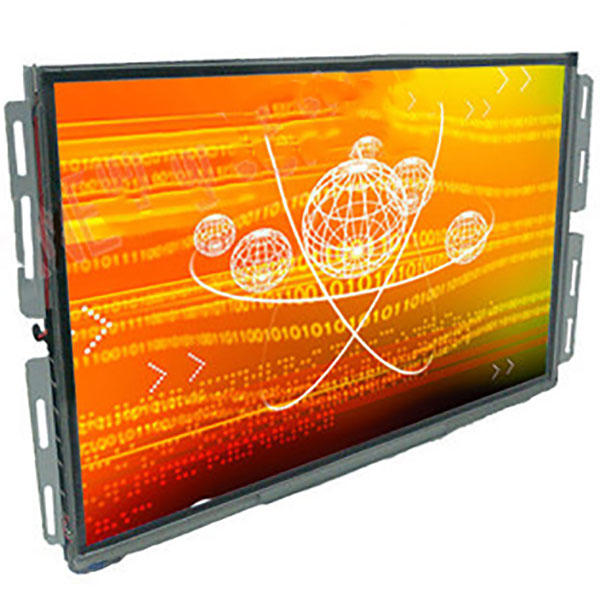

| Display | 22″ Color TFT Open Frame Resistive touch monitor |
| Model Name | AXD-22OPN1P1-T1 |
| Active Display Area (mm) | 473.37(H)x296.1(V) |
| Pixel Pitch (mm) | 0.282(H)x0.282(V) |
| Resolution (Pixel) | WSXGA (1680X1050) 16.2M colors |
| Brightness (CD/m^2) | 300cd/m^2 |
| Contrast Ratio | 1000:1 |
| Viewing Angle (CR >=10) | 170/160 |
| Power consumption | 28.5 W typical, normal operation |
| Touch Screen | Resistive RS232/USB(Optional) Anti-vandal |
| OSD Control | On the back side |
| I/O Connectors | 1x12v,1XVGA,DVI-D(Optional) |
| Power Input | DC 12V,4A 48W |
| Mechanical Specifications | |
| Construction | steel metal / Black or White options |
| Dimensions | 530.1x 325.0x 50.0(mm) |
| Mounting | Embedded ,vesa 75×75(100×100) Wall Mounting Optional |
| Power source | AC 100~240V/ 12V DC/AC adapter |
| Environment Specifications | |
| Operating Temperature | -10~50℃ |
| Storage Temperature | -20~60℃ |
| Rating | Facilitate installation of the demolition,solid portfolio |
| Ordering Information | 22.0”OP wide screen Resistive touch Monitor with VGA input |
Features and Advantages
1. New and A grade perfect panels with wide viewing angle
2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed
3. industrial control board supports the displays working 24 hours
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. VGA DVI interfaces; Resistive long use life with USB/ RS232 touch controller
6. 22 inch touch open frame monitor for application control , advertising player ,campus and industrial terminals etc
