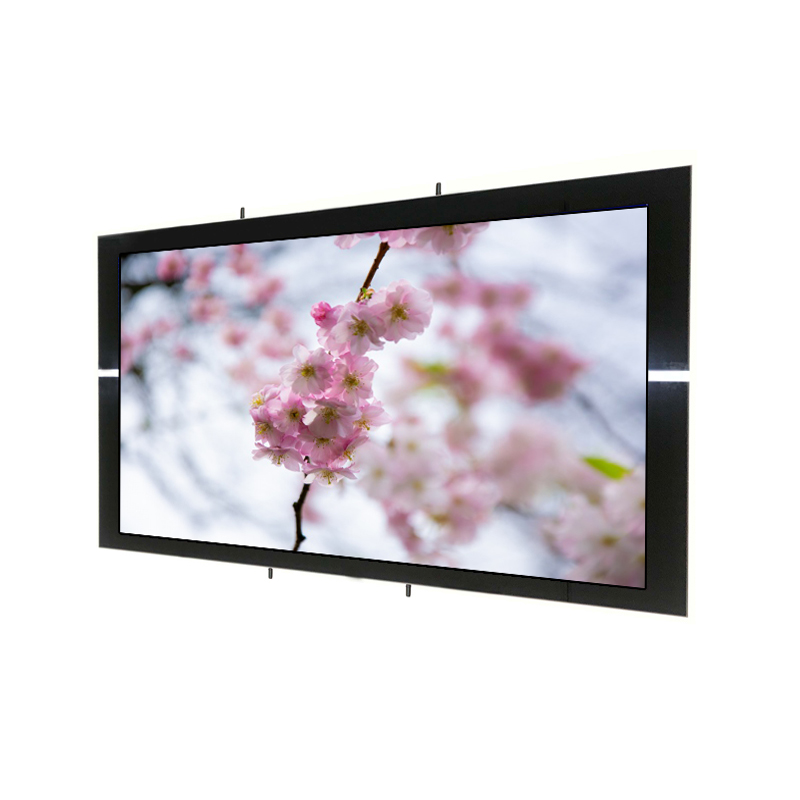

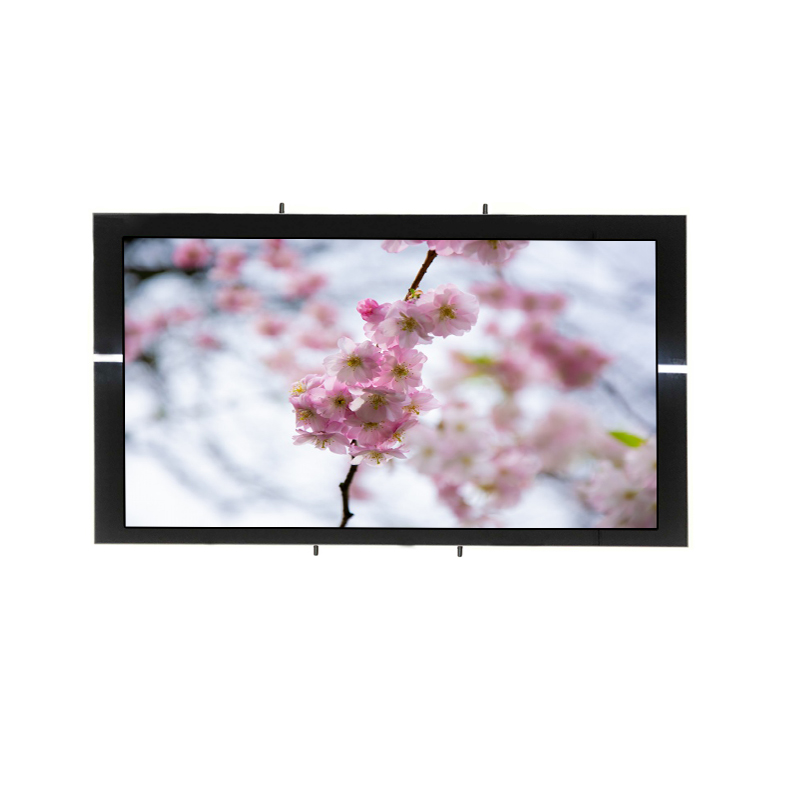

400nits 17.3 Inch Open Frame Touch Monitor VGA Digital Capacitive Touch Display

Brand :

Model NO: AXD-17OPEXT3-TP4

Screen Size: 17.3 Inch

Display Resolution(pixel): 1920×1080

Contrast Ratio: 600:1

Brightness (CD/m^2): 400cd/m^2

Touch type: Projected Capacitive

Application: Kiosks,Industrial machines,Automation,etc

Category:
Display Specifications
Display 17.3″ Open Frame Touch  Monitor
Model Name AXD-17OPEXT3-TP4
Active Display Area (mm) 385.09 (H)x218.01(V)
Pixel Pitch (mm) 0.1989 x 0.1989
Resolution (Pixel) WSXGA (1920X1080)
Brightness (CD/m^2) 400cd/m^2
Contrast Ratio 600:1
Viewing Angle (CR >=10) 170/160
Power consumption 18.4 W typical, normal operation
Touch Screen Pro-Capacitive Touch( Multi-touch)
OSD Control On the back side
I/O Connectors 1x12v,1XVGA,DVI-D,H-Dmi
(Optional)
Power Input DC 12V,4A 48W

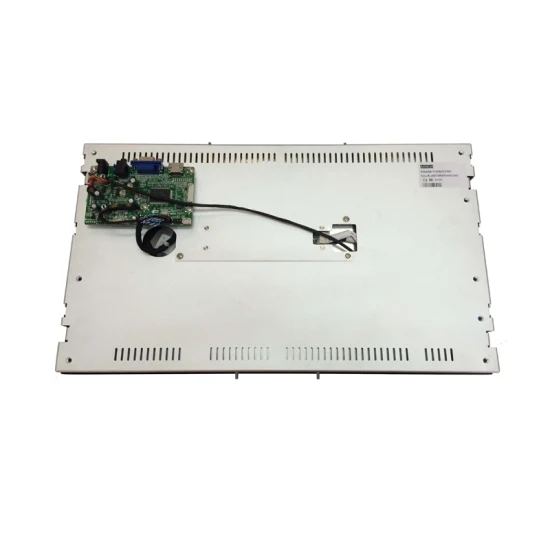

Mechanical Specifications
Construction Steel metal housing
Dimensions 428.0x 265.0x 42.0(mm)
Mounting Embedded ,fixing holes on the back frame
Power source AC 100~240V/ 12V DC
Environment Specifications
Operating Temperature -10~60ºC
Storage Temperature -20~70ºC
Rating Facilitate installation of the demolition,solid portfolio
Ordering Information 17.3″ Touch lcd Open frame FHD with VGA input and power adapter



Features and Advantages

1. New and Industrial A grade perfect panels with stable supply
2. industrial control board supports the displays working 24 hours
3. Professional and industrial hardware and parts to guarantee its working normally in rough environment
4. VGA H-dmi interfaces and the optional port for touch screen
5. 17.3” Open frame touch monitor for medical devices , advertising player ,kiosk terminals etc
