Panel PC information | |
Model Number | AXD-05OPIPPC |

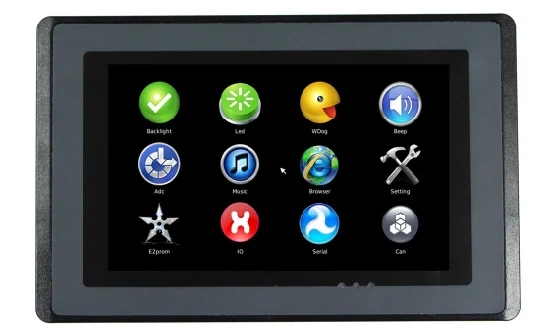

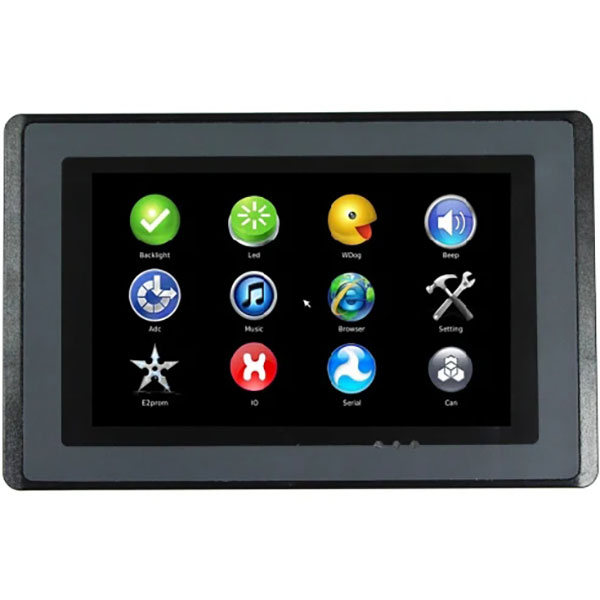

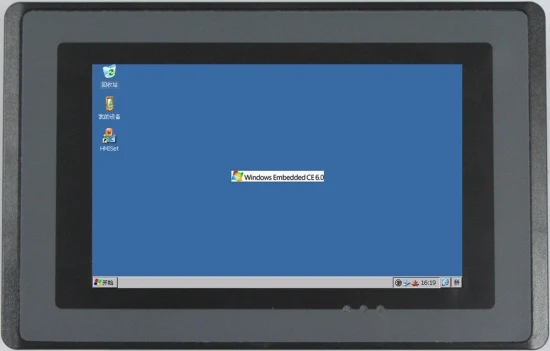

5.0” Mini Touch panel pc | |
Case/Bezel Color | Black front bezel |
TFT Type | Industrial LCD with LED backlight |
Aspect ratio | 16:9 |
Touch Panel | Industrial 4 wire Resistive Flat Screen |
Touch response time | 10ms (typical) |
Optimal (native) Resolution | 800 x 480 |
LCD panel Pixel pitch | 0.264 x 0.264 mm |
LCD panel Colors | 16.2 million |
LCD panel Brightness | 300 cd/m2 |
LCD panel Response Time | 8ms |
Contrast Ratio | 500:1 |
Viewing Angle ( Wide ) | |
Horizontal (left/right) | ±60° or 120° total |
Vertical (up/down) | 60°(up),60°(down) or 120° total |
CPU |
Cortex-A8 1GHz |
storage | 512MDDR3 SDRAM( Andriod is 1G) |
Serial Ports | 4 x COM ports (1x RS-232/422/485 by-pin connector) |
USB Ports | 2 x USB external ports |
LAN | 1 x LAN RJ-45 connector/WIFI options |
NandFlash | 256M Flash |
DC Power In | 1 x 4-pin connector |
Extended storage | 32G for SD card |
Optional interfaces | CAN/RS485 |
Supporting O.S | Linux3.2;Andriod 4.4;WinCE6.0 |
Power Specification | DC 9V-24V |
Working Environment | |
Temperature | Operating: 0°C to 50°C ;Storage -10°C to 65°C |
Operating Humidity | 5 ~ 90% RH @40°C (non-condensing |
Vibration | 5 ~ 500Hz, 3Grms Random (with CF/SSD) |
Dimensions | |
Mounting Type | Embedded Installation |
Weight (Net) | 1.5kgs/ piece |
Drawings | Please contact us for details |
Packaging & Delivery
Packing details |
1x 5.0 Inch Mini Touch Panel PC; Packed in 10 pieces/carton with protection foam Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter |
Delivery terms | 7- working days for stock products after receiving payments; 15working days for order production |
