| Display Specifications | |
| Display | 15.6″ Color TFT Open Frame touch Monitor |
| Model Name | AXD-15OPN1P3-VT1-W |
| Active Display Area (mm) | 344.16(H)x193.59(V) |
| Pixel Pitch (mm) | 0.1795(H)x0.1795(V) |
| Resolution (Pixel) | 1366×768 |
| Brightness (CD/m^2) | 300nits |
| Contrast Ratio | 500:1 |
| Viewing Angle (CR >=10) | 160/140 |
| Power consumption | 10.6 W typical, normal operation |
| Touch Screen | Pro-Capacitive touch panel( USB Controller) |
| OSD Control | On the back side |

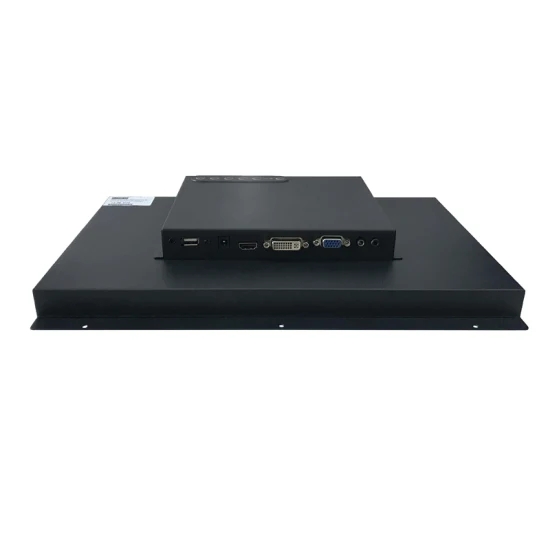

| I/O Connectors | 1x12v,1XVGA,1xDVI, 1xH-dmi |
| Power Input | DC 12V, 4A 48W |
| Mechanical Specifications | |
| Construction | Steel housing & black Color, anti-vandal |
| Dimensions | 397.0x 25270.0×43.0(mm) |
| Mounting | Embedded ,up and down; left-right fixing holes, vesa75x75;100×100 Wall Mounting Optional |
| Power source | AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature | -20~70ºC |
| Storage Temperature | -20~70ºC |
| Rating | Facilitate installation of the demolition,solid portfolio |
| Ordering Information | 15.6″ resisitve touch monitor with H-dmi port |
Features and Advantages
1. 15.6 inch wide screen with 5 wire Resistive adopts1366X768 New and Industrial A grade perfect panels
2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed
3. industrial control board supports the displays working 24 hours, vga h-dmi, DVI signal inputs
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. 5 Wire resisitive touch panel with USB touch controller witout any interference, which is one economic and stable solution.
6. 15.6 inch open frame resistive touch could be installed for kiosks, Automatic equipments , industrial application,etc
