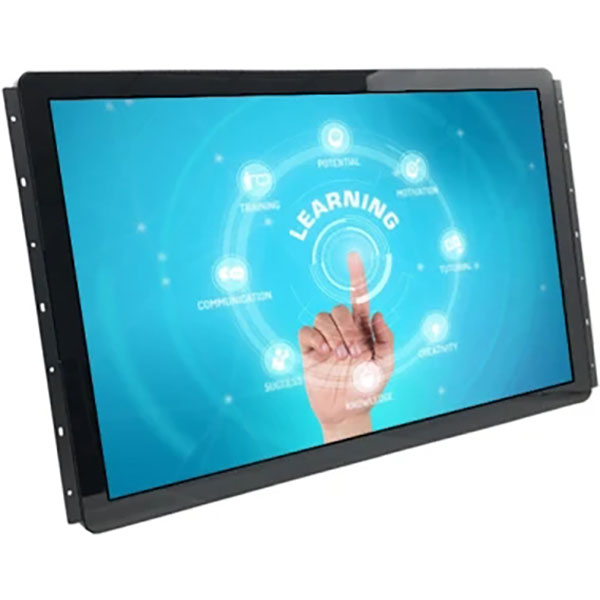

500 Nits 32 Inch Capacitive Touch Monitor USB VGA DVI Open Frame

Brand :

Model NO: AXD-32OPN1P2-T2P

Screen Size: 32 Inch

Display Resolution(pixel): 1980×1080

Contrast Ratio: 2000:1

Brightness (CD/m^2): 500cd/m^2

Touch type: Resistive/Capacitive Touch screen

Application: Kiosks,Industrial machines,Automation,etc

Display Specifications
Display 32″ Color TFT Capacitive touch monitor
Model Name AXD-32OPN1P2-T2P
Active Display Area (mm) 698.4 (H)x392.85(V)
Pixel Pitch (mm) 0.363(H)x0.363(V)
Resolution (Pixel) WSXGA (1920X1080)
Brightness (CD/m^2) 500cd/m^2
Contrast Ratio 2000:1
Viewing Angle (CR >=10) 178/178
Power consumption 45 W typical, normal operation
Touch Screen
Type Capacitive touch with 4mm anti-vandal glass
Multi touch 10 points touch
Support O.S Linux, android, windows
OSD Control On the back side
I/O Connectors 1x12v,1XVGA,DVI-D(Optional)
Power Input
Touch Screen options
110v-220v AC power plug
capacitive touch screen
Mechanical Specifications
Construction Steel metal housing
Dimensions 811.0x 450.0x 75.2(mm)
Mounting Embedded ,fixing holes on the
Power source AC 100~240V/ 12V DC
Environment Specifications
Operating Temperature 0~60ºC
Storage Temperature -20~60ºC
Rating Facilitate installation of the demolition,solid portfolio
Ordering Information 32″ Open frame IR touch LCD HD with 1000nits brightness monitors

Features and Advantages

1. High Resolution with high contract LCD in stable supply

2. industrial control board supports the displays working 24 hours

3. 178/178 wide viewing angle with high performance

4. VGA HDMI ,DVI etc interfaces

5. Integrated solution for touch screen and LCD display; good performance and easy assembling.

6. Multi-options for assembling, including vertical, horizontal support. You may assemble it in VESA standard solution or in your own design.

7. We also provide the service of producing the product in users’ own design.
