| Display Specifications | |
| Display | 15.6″ Color TFT Open Frame Capacitive LCD touch Monitor |
| Model Name | AXD-15OPN1P3-T2W |
| Active Display Area (mm) | 344.16(H)x193.59(V) |
| Pixel Pitch (mm) | 0.1795(H)x0.1795(V) |
| Resolution (Pixel) | 1366×768 |
| Brightness (CD/m^2) | 500nits |
| Contrast Ratio | 500:1 |
| Viewing Angle (CR >=10) | 160/140 |
| Power consumption | 10.6 W typical, normal operation |
| Touch Screen | Pro-Capacitive touch panel( USB Controller) |
| OSD Control | On the back side |

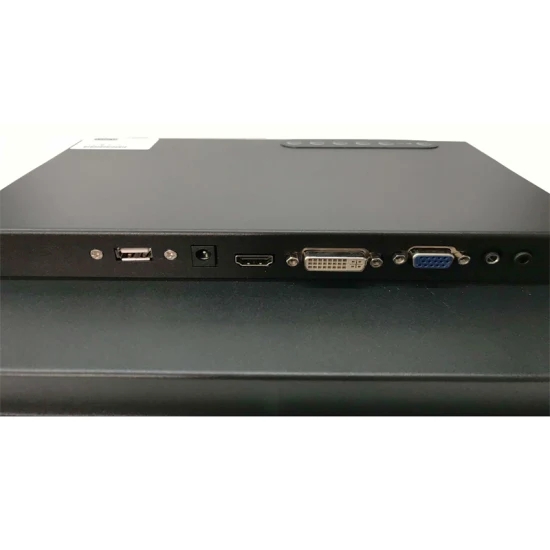

| I/O Connectors | 1x12v,1XVGA,1xDVI, 1xHDMI |
| Power Input | DC 12V, 4A 48W |
| Mechanical Specifications | |
| Construction | Steel housing & black Color, anti-vandal |
| Dimensions | 397.0x 25270.0×43.0(mm) |
| Mounting | Embedded ,up and down; left-right fixing holes, vesa75x75;100×100 Wall Mounting Optional |
| Power source | AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature | -20~70ºC |
| Storage Temperature | -30~70ºC |
| Rating | Facilitate installation of the demolition,solid portfolio |
| Ordering Information | 15.6″ LCD with 2mm anti-vandal capacitive touch with display port Input |
Features and Advantages
1. 15.6 inch open frame lcd monitor adopts1366X768 New and Industrial A grade perfect panels , high brightness up to 500nits.
2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed
3. industrial control board supports the displays working 24 hours, hdmi, DVI signal inputs
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. Projection capacitive touch with anti-vandal glass, could be 3mm/4mm/6mm, eeti chipset witout any interference.
6. 15.6 inch open frame capacitive touch could be installed for Medical industry , Automatic equipments etc
