Display

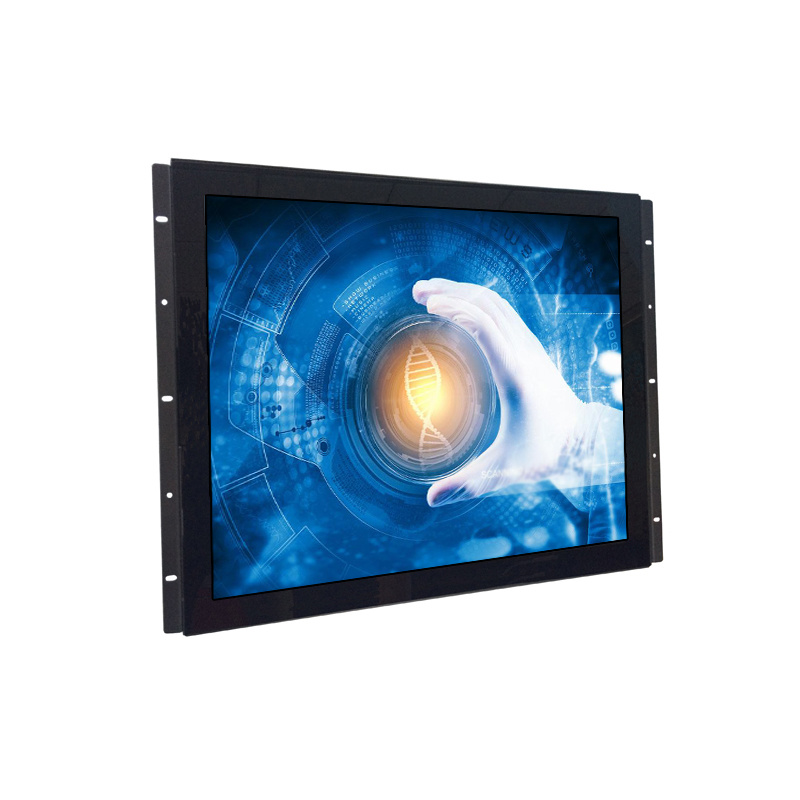

19″ Color TFT High brightness touch Monitor

Model Name

AXD-19OPN1P2-VHT2

Active Display Area (mm)

376.3 (H)x301.1(V)

Pixel Pitch (mm)

0.294(H)x0.294(V)

Resolution (Pixel)

SXGA (1280X1024) 16.2 M (6 bit + FRC)

Brightness (CD/m^2)

600cd/m^2

Contrast Ratio

2000:1

Viewing Angle (CR >=10)

178/178

Power consumption

50.5W typical, normal operation

Touch Screen

Capacitive touch panel anti-vandal

OSD Control

On the back side

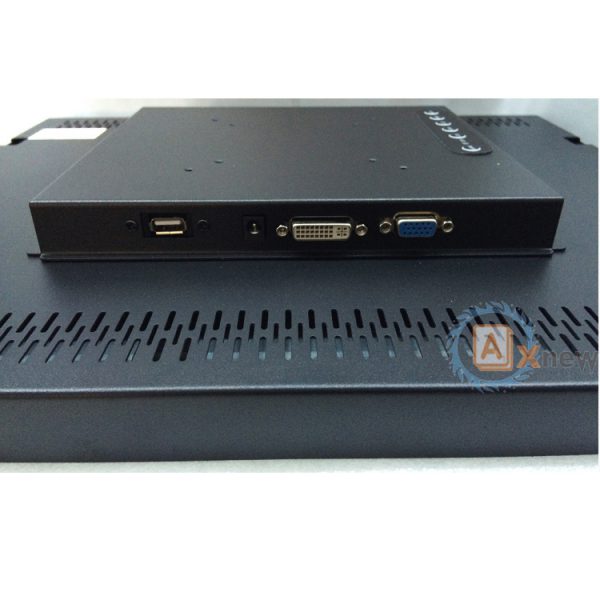

I/O Connectors

1x12v,1XVGA,DVI-D(Optional)

Power Input

DC 12V,4A 48W

Mechanical Specifications

Construction

Steel chassis & Black Color

Dimensions

432.0 x 339.0×49.8 (mm)

Mounting

Edge locking ,fixing holes embedded

Power source

AC 100~240V/ 12V DC-4A

Environment Specifications

Operating Temperature

-20~75ºC

Storage Temperature

-20~85ºC

Rating

Facilitate installation of the demolition, solid portfolio

Ordering Information

19″ PCAP high brightness display  600nits with VGA input and power adapter
