| Display Specifications | |

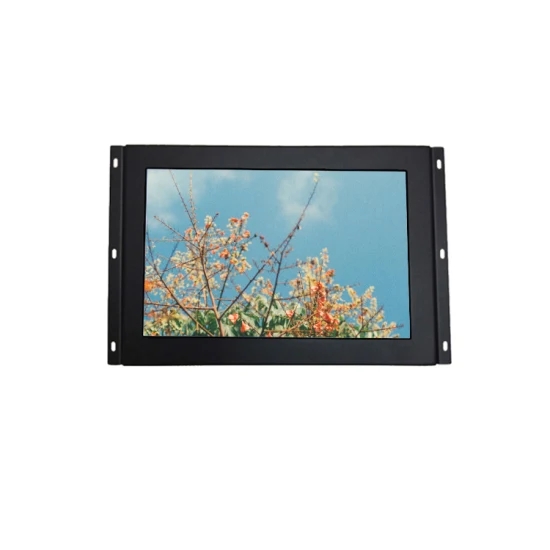

| Display | 10.1″ TFT IPS LCD with LED Backlight |
| Model Name | AXD-10OPN1P1-T6 |
| Active Display Area (mm) | 216.96(H) x 135.6 (V) |
| Pixel Pitch (mm) | 0.1695 (H) x 0.1695 (V) |
| Resolution (Pixel) | SVGA (1280X800) 16.2M Color |
| Brightness (CD/m^2) | 650cd/m^2 |
| Contrast Ratio | 800:1 |
| Viewing Angle (CR >=10) | 170/170 |
| Power consumption | 8.52W typical, normal operation |
| Touch Screen | Capacitive touch panel |
| OSD Control | On the back side |
| I/O Connectors | 1x12v,1XVGA,DVI-D |
| Power Input | DC 12V,4A 48W |
| Mechanical Specifications | |
| Construction | rugged open frame with edge fixings |
| Dimensions | 287 x 185 x33 (mm) |
| Mounting | Embedded, edge fixing |
| Power source | AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature | -10~60ºC |
| Storage Temperature | -20~70ºC |
| Rating | Facilitate installation of the demolition, solid portfolio |
| Ordering Information | 10.1″ industrial touch display |
Packaging & Delivery
| Packing details | 1x 10.1 inch Industrial Touch Screen Monitor;Packed in 5 pieces/carton with protection foam
Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter |
| Delivery terms | 7- working days for stock products after receiving payments; 15 working days for order production |
Features and Advantages
1. New and Industrial A grade perfect panels with stable supply
2. Wide viewing angle with IPS technology LCD screen with led backlight low consumption
3. Control board supports the displays with VGA and DVI options.
