| LCD monitor information | |
| Model Number | AXD-07OPPM4-T2C |

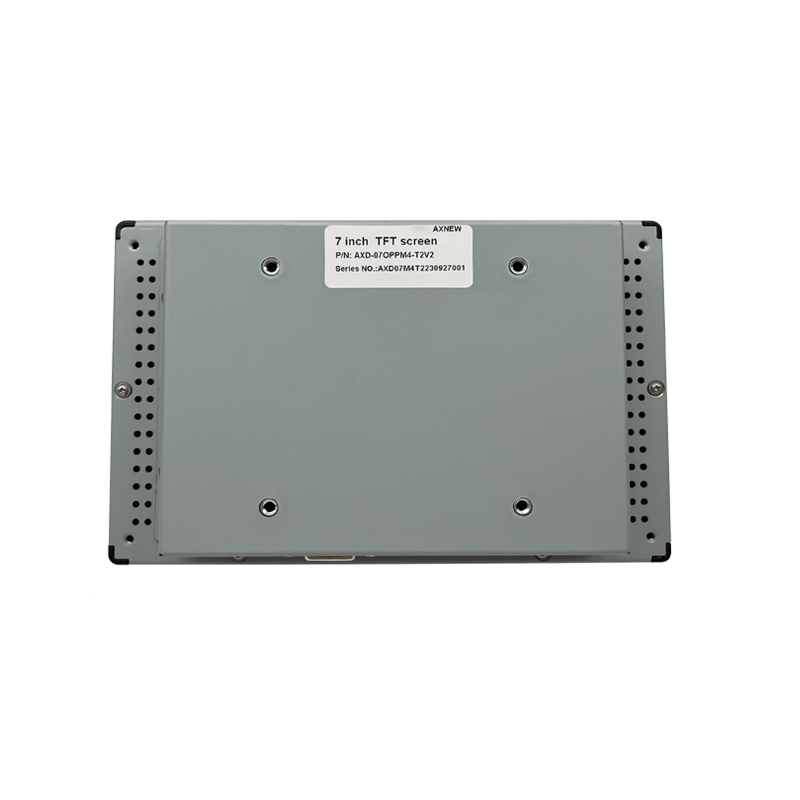

| 7’’ Industrial Open Frame Touch Monitor | |
| Type | 7 “ TFT Active Matrix LCD with LED Backlight( IPS) |
| Active Display Area(mm) | 154.08 (H) x 85.92 (V) |
| Pixel Pitch(mm) | 0.0642 (H) x 0.1790 (V) |
| Resolution | 1024X600 |
| Contrast Ratio | 800:1 (typ.) |
| Display Color | 16.7 M colors |
| Brightness | 550(Typ) |
| Viewing Angles | 170(H);170(V) |
| Response Time | 10ms/15ms |
| Environmental Temperature | |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Signal Input | |
| PC | RGB analog(VGA), HDMI |
| RGB Frequency | H:31.5~38kHz, V:50~60Hz |
| Power Specification | |
| Voltage Consumption | AC 100~240V,Universal,±10% ; AC/DC 12V4A |
| 3.3W typical, normal operation |
| Touch Screen Optional | |
| capacitive touch type | G+G cover glass |
| Touch interface | USB |
| Transmittance | >=88% |
| Input voltage | less than 5.5V |
| working temperature | -30℃~80℃ |
| touch life | >=5,000,000 times in one position |
| Dimensions | |
| Holes fixings | Vesa mounting 75×75/ fixing holes on the right/left |
| Mechanical dimensions | 186.2mmx119.9mmx 30mm |
| Drawings | Please contact us for details |
Features and Advantages
1.7” Industrial Grade with super long use led backlight over 30,000 Hours.
2.Industrial control board with wide temperature supports the displays working 24 hoursx7 days
3.Open frame with IP65 front design to protect the screen from water and rainy
4.HDMI interfaces ;Projected-capactive touch screen
5.Low consumption with wide temperature operation
6.7 inch open frame monitor with high brightness 550nits for outdoor advertising , outdoor player ,campus and industrial terminals etc
Packaging & Delivery
| Packing details | 1x 7 inch Industrial Open Frame Monitor;Packed in 10 pieces/carton with protection foam
Optional accessories: 1Xhdmi , 1x Power supply cable, 1x power adapter |
| Delivery terms | 7- working days for stock products after receiving payments; 15 working days for order production |
