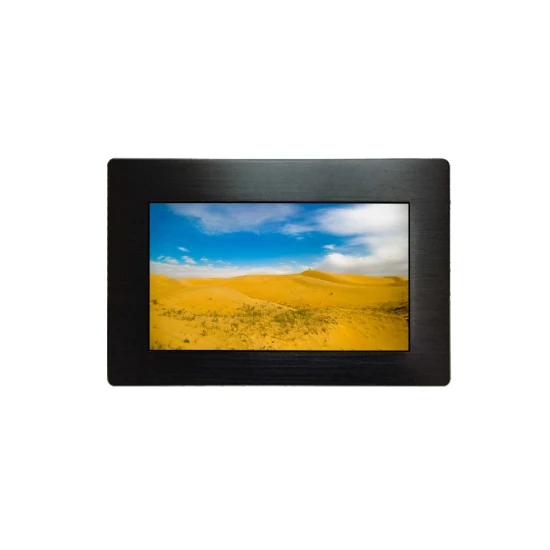

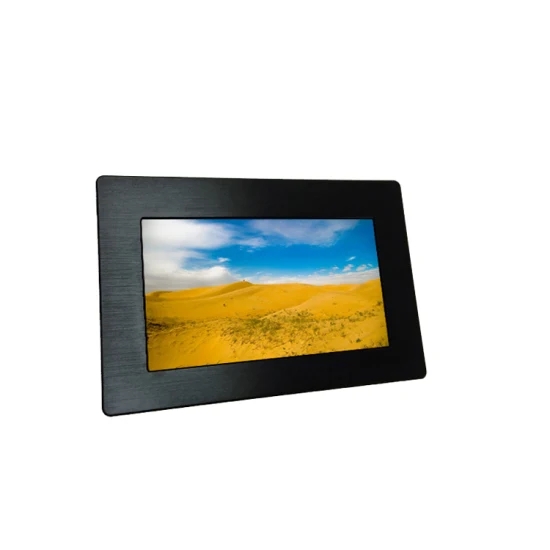

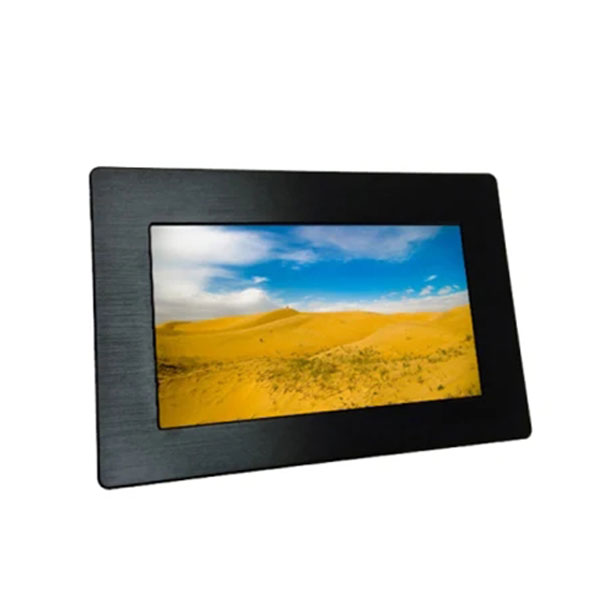

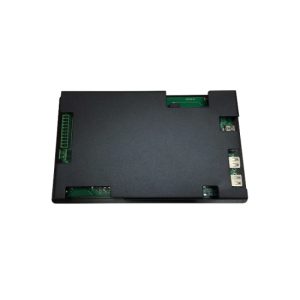

7 Inch Cortex Mini Touch Screen Computer with Linux3.2 Qt4.8.5 Supporting Can_Bus 3G

Brand :

Model NO: AXD-07OPIPPC-V2
Screen Size: 7 Inch
Display Resolution(pixel): 800×480
Contrast Ratio:500:1
Brightness (CD/m^2): 300cd/m^2
Touch type: Resistive/Capacitive Touch screen
Application: Kiosks,Industrial machines,Automation,etc

Panel PC information
Model Number AXD-07OPIPPC-V2
7.0” Mini Touch panel pc For Linux
Case/Bezel Color Black/ Aluminum front bezel
TFT Type Industrial LCD with LED backlight
Aspect ratio 4:3
Touch Panel Industrial 4 wire Resistive Flat Screen
Touch response time 10ms (typical)
Optimal (native) Resolution 800 x 480
LCD panel Pixel pitch 0.264 x 0.264 mm
LCD panel Colors 16.2 million
LCD panel Brightness 300 cd/m2
LCD panel Response Time 8ms
Contrast Ratio 500:1
Viewing Angle ( Wide )
Horizontal (left/right) ±70° or 140° total
Vertical (up/down) 70°(up), 70°(down) or 140° total
CPU

ARM9 embedded CPU Cortex A8,,

frequency is 800MHZ

storage 512M Bytes DDR3 SDRAM
Serial Ports 4 x COM ports (1x RS-232/422/485 by-pin connector)

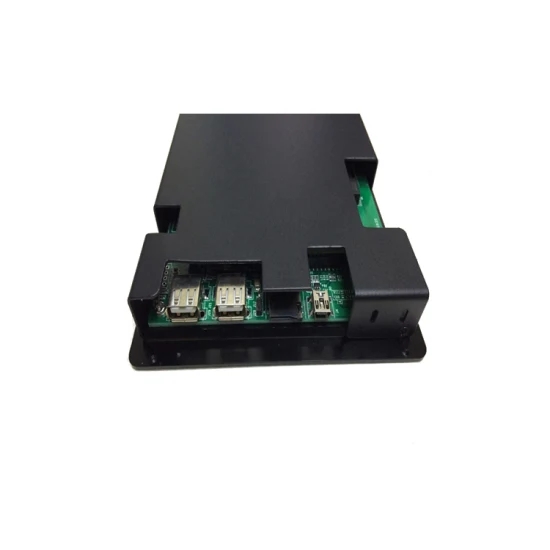

USB Ports 2 x USB external ports
LAN 1 x LAN RJ-45 connector/WIFI options
NandFlash 256M Flash
DC Power In 1 x 4-pin connector
Extended storage 32G for SD card
Optional interfaces CAN/RS485
Power Specification DC 9V-24V
Working Environment
Temperature Operating: 0°C to 50°C ;Storage -10°C to 65°C
Operating Humidity 5 ~ 90% RH @40°C (non-condensing
Vibration 5 ~ 500Hz, 3Grms Random (with CF/SSD)
Dimensions
Mounting Type Embedded Installation
Mechanical dimensions 134×205 x 28.6 mm
Weight (Net) 2.5kgs/ piece
Drawings Please contact us for details

Packaging & Delivery

Packing details

1x 7.0 Inch mini Touch Panel PC for Linux;

Packed in 10 pieces/carton with protection foam

Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter

Delivery terms 7- working days for stock products after receiving payments; 15working days for order production
