| LCD monitor information | |
| Model Number | AXD-07OPN1P2-T2 |

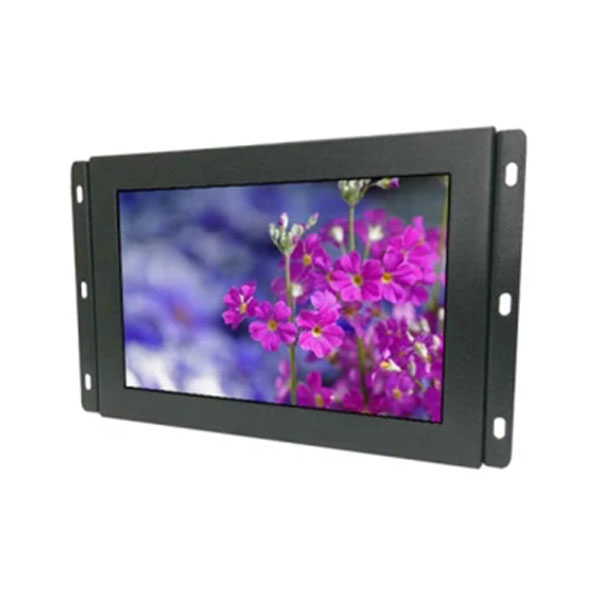

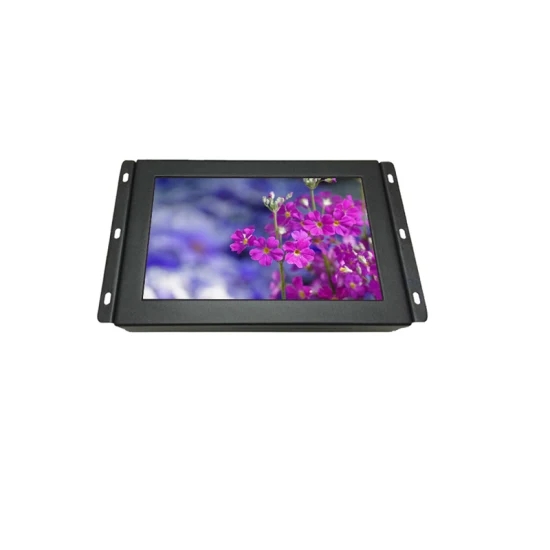

| 7” Touch LCD Monitor | |
| Type | 7 ” TFT Active Matrix LCD with LED Backlight |
| Active Display Area(mm) | 154.08 (H) x 85.92 (V) |
| Pixel Pitch(mm) | 0.0642 (H) x 0.1790 (V) |
| Resolution | 800 x 480, up to 1024X768 |
| Contrast Ratio | 500:1 (typ.) |
| Display Color | 16.7 M colors |
| Brightness | 250(Typ) |
| Viewing Angles | 140(H);120(V) |
| Response Time | 10ms/15ms |
| Environmental Temperature | |
| Operating Temperature | -10ºC~70ºC |
| Storage Temperature | -20ºC~80ºC |
| Signal Input | |
| PC | RGB analog(VGA), HDMI |
| RGB Frequency | H:31.5~38kHz, V:50~60Hz |
| Power Specification | |
| Voltage Consumption | AC 100~240V,Universal,±10% ; AC/DC 12V4A |
| 3.3W typical, normal operation |
| Touch Screen Optional | capacitive touch (anti-vandal) |
| capacitive touch type | G+G cover glass |
| Touch interface | USB |
| Transmittance | >=88% |
| Input voltage | less than 5.5V |
| working temperature | -10ºC~65ºC |
| touch life | >=5,000,000 times in one position |
| Dimensions | |

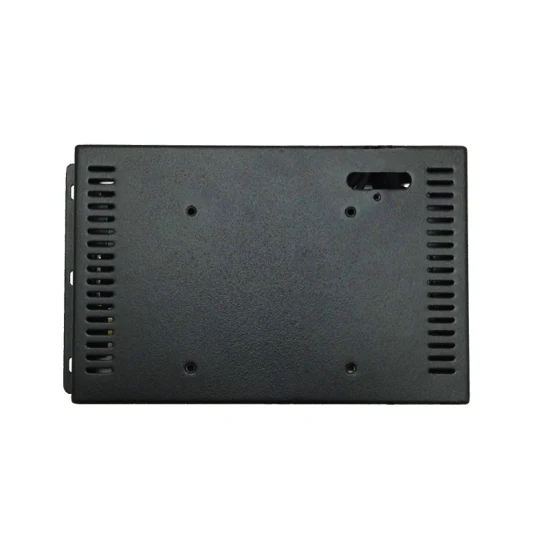

| Holes fixings | Vesa mounting 75×75/ fixing holes on the right/left |
| Mechanical dimensions | 208mmx124mmx31mm |
| Drawings | Please contact us for details |
Features and Advantages
1. 7” with 800X480, led backlight
2. industrial control board with wide temperature supports the displays working 24 hours
3.Open frame design to protect the LCD screen
4. VGA DVI interfaces ;No touch screen
5. 15 inch open frame monitor with high brightness 1000nits for outdoor advertising outdoor player ,campus and industrial terminals etc
6. Low consumption with wide temperature operation
