| Display Specifications | |

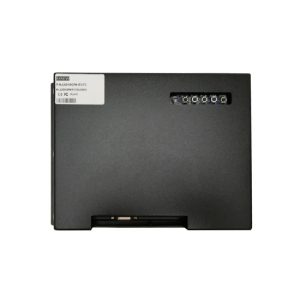

| Display | 8.4″ Color TFT Industrial Monitor |
| Model Name | AXD-084IPN1P1 |
| Active Display Area (mm) | 170.4(H)x127.8(V) |
| Pixel Pitch (mm) | 0.213(H)x0.213(V) |
| Resolution (Pixel) | SVGA (800X600) 262K/16.2M Color |
| Brightness (CD/m^2) | 220cd/m^2;350cd/m^2 |
| Contrast Ratio | 500:1 |
| Viewing Angle (CR >=10) | 150/150 |
| Power consumption | 3.3W typical, normal operation |
| Touch Screen | Resistive;RS232/USB(Optional) |
| OSD Control | On the back side |

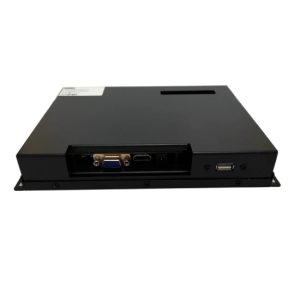

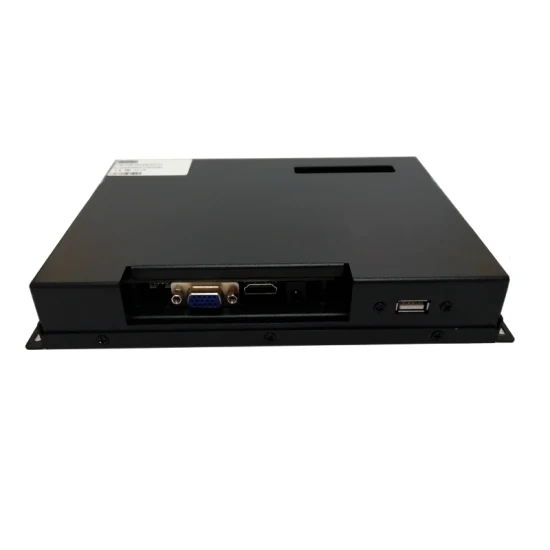

| I/O Connectors | 1x12v,1XVGA,DVI-D(Optional) |
| Power Input | DC 12V,@4A 48W |
| Mechanical Specifications | |
| Construction | Aluminum front bezel &Black Color
|
| Dimensions | 210.0 x 147.4x 22.0 (mm) |
| Mounting | Embedded ,Wall Mounting Optional |
| Power source | AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature | -30~80ºC |
| Storage Temperature | -30~80ºC |
| Rating | Facilitate installation of the demolition,solid portfolio |
| Ordering Information | 8.4″ industrial touch Monitor with VGA input and power adapter |
