| Panel PC information | |
| Model Number | AXD-08PPC-V2 |

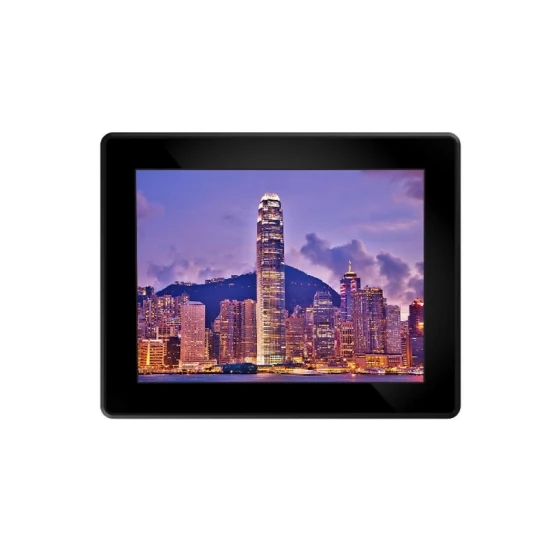

| 8.4” MiniTouch pc | |
| Case/Bezel Color | Black |
| TFT Type | 8.4 inch AUO new industrial LCD with LED backlight |
| Aspect ratio | 4:3 |
| Useful Screen Area | 170.4 mm x 127.8 mm |
| Touch Panel | Industrial Resistive Flat Screen |
| Touch response time | 10ms (typical |
| Touch PC Dimensions | 232x 186×53.3 mm |
| Optimal (native) Resolution | 800X600 |
| LCD panel Pixel pitch | 0.264 x 0.264mm |
| LCD panel Colors | 262K/16.7 million |
| LCD panel Brightness | 450 cd/m2 |
| LCD panel Response Time | 8 ms |
| Contrast Ratio | 600:1 |
| Viewing Angle ( Wide ) | |
| Horizontal (left/right) | ±80° or 160° total |
| Vertical (up/down) | 65°(up), 65°(down) or 30° total |

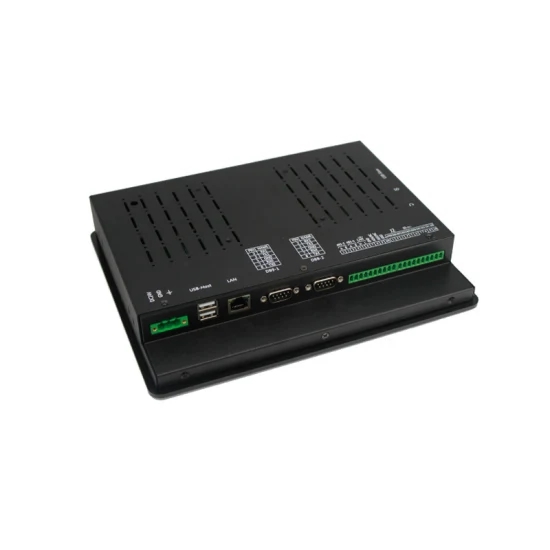

| Output Interface | COM/HDMI type/ Audio/Mic |
| Input Interface | USB*3 |
| Net | Internet LANX2 |
| Watch Dog Technology | Support |
| Power Specification | External AC to DC power brick |
| Monitor input: +12VDC ±5%,3.0 A; DC Jack (2.5) | |
| AC to DC power brick input: 100-240 VAC, 50/60 Hz | |
| Power dissipation: 10W max | |
| ECM (Embed Computer Module) | Intel® processor N2600 SSD: 32G;Rom:2G(DDR3,max6G); Operation System:winxp/Win7/win8/win10/linux |
| Temperature | Operating: -10°C to 60°C ;Storage -20°C to 70°C |
| Humidity (non condensing) | Operating: 20%-90%; Storage: 10%-95% |
| Shipping Carton Dimensions | 490 x 440 x340 mm (Five pieces in one ) |
| Weight (approx.) | Actual: 11kg ;Shipping: 15kg |
| Dimensions | |
| Holes fixings | Vesa mounting 100×100 |
| Drawings | Please contact us for details |
Features and Advantages
1. Fanless passive cooled mainboard with low consumption , brand motherboard to support the working 24×7 days
2. 4G RAM, 64G SSD for memory
3. Capacitive touchscreen makes the touch sense perfectly
4. Mounting holes on base bottom for tabletop security; VESA mounting on the backside
5. 8 .4”industrial Touch pc hardware for industrial terminals, Automatic applications, KIOSKs etc.
