| Display Specifications | |
| Display | 12.1″ Color TFT Industrial Monitor |
| Model Name | AXD-12OPIPN1P1 |
| Active Display Area (mm) | 246 (H)x184.5(V) |
| Pixel Pitch (mm) | 0.3075(H)x0.3075(V) |
| Resolution (Pixel) | SVGA (800X600) 262K/16.2M Color |
| Brightness (CD/m^2) | 600cd/m^2;1000cd/m^2 |
| Contrast Ratio | 700:1 |
| Viewing Angle (CR >=10) | 160/140 |
| Power consumption | 12W/15.5W typical, normal operation |
| Touch Screen | Resistive ;IR Touch ;RS232/USB(Optional) |
| OSD Control | On the back side |

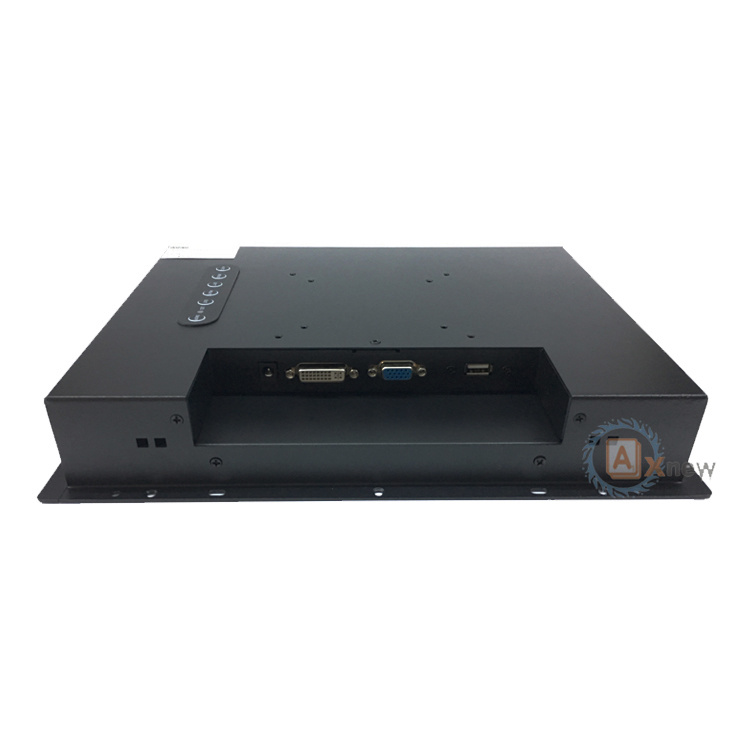

| I/O Connectors | 1x12v,1XVGA,DVI-D(Optional) |
| Power Input | DC 12V,4A 48W |
| Mechanical Specifications | |
| Construction | Aluminum front bezel &Black Color |
| Dimensions | 351.0 x 265.0x 56.0(mm) |
| Mounting | Embedded ,Wall Mounting Optional |
| Power source | AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~85ºC |
| Rating | Facilitate installation of the demolition,solid portfolio |
| Ordering Information |
12.1″ IP Monitor with VGA input and power adapter |
