| Display Specifications | |
| Display | 21.5″ Open Frame capacitive touch monitor (LED) |
| Model Name | AXD-21OPN1P1-T2P Va |
| Active Display Area (mm) | 476.64 (H)x268.11(V) |
| Pixel Pitch (mm) | 248.25 (per one triad) x 248.25 |
| Resolution (Pixel) | WSXGA (1920X1080) |
| Brightness (CD/m^2) | 250cd/m^2 |
| Contrast Ratio | 1000:1 |
| Viewing Angle (CR >=10) | 178/178 |
| Power consumption | 25.71 W typical, normal operation |
| Touch Screen | |
| Type | Pro-Capacitive Touch |
| Construction | G+G 3.0 mm cover glass |
| Hardness | 6H |
| Chipset | EETI |
| Support O.S | multi touch for Linux,andriod, winxp/7/8/10, etc |
| Communication port | USB for touch connection only, RS232 options |
| Connectors | |
| OSD Control | On the back side |

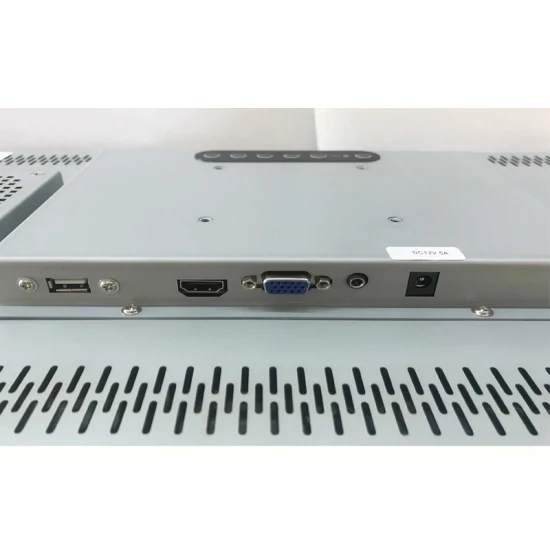

| I/O Connectors | 1x12v DC Jack,1XVGA,1xHDMI; 1x AV |
| Power Input | DC 12V,4A 48W |
| Mechanical Specifications | |
| Construction | Steel metal housing |
| Dimensions | 522.0x 294.6x 33.0(mm) |
| Mounting | Embedded ,fixing holes on the back frame |
| Power source | AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature | 0~50ºC |
| Storage Temperature | -20~60ºC |
| Rating | Facilitate installation of the demolition,solid portfolio |
| Ordering Information | 21.5″ Open frame FHD capacitive monitor with hdmi input and power adapter |
